ADC0817CCN

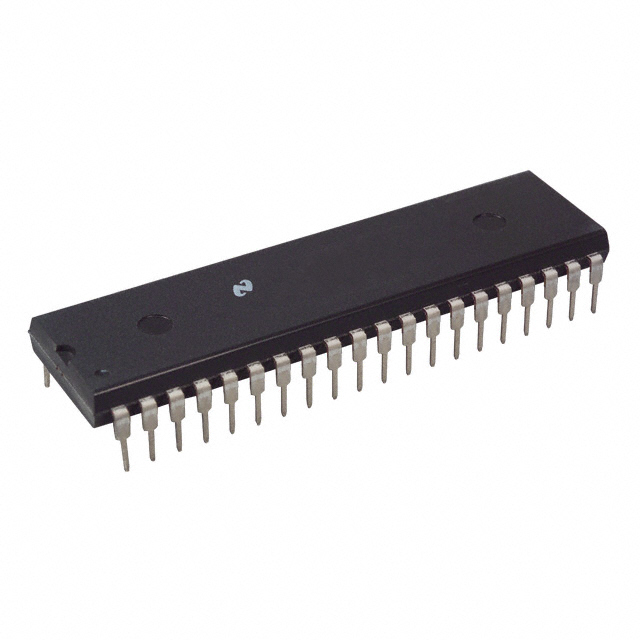

ADC0817CCN, 8-Bit uP Compatible A/D Converter, 40-DIP, 6.5V, 3mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: ADC0817CCN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-07

From Other Seller

Part Number:ADC0817CCN
US $0.20 - 1.60
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

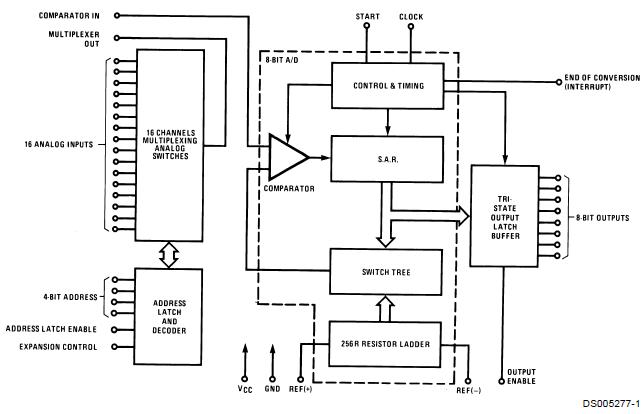

The ADC0817CCN is a monolithic CMOS device with an 8-bit analog-to-digital converter, 16-channel multiplexer and microprocessor compatible control logic. The ADC0817CCN uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 16-channel multiplexer can directly access any one of 16-single-ended analog signals, and provides the logic for additional channel expansion. Signal conditioning of any analog input signal is eased by direct access to the multiplexer output, and to the input of the ADC0817CCN.

Parametrics

ADC0817CCN absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Voltage at Any Pin: -0.3V to (VCC+0.3V); (3)Voltage at Control Inputs: -0.3V to 15V; (4)Storage Temperature Range: -65℃ to + 150℃; (5)Package Dissipation at TA = 25℃: 875 mW; (6)Lead Temp. (Soldering, 10 seconds), Dual-In-Line Package (Plastic): 260℃; Molded Chip Carrier Package Vapor Phase (60 seconds): 215℃; Infrared (15 seconds): 220℃; (7)ESD Susceptibility: 400V.

Features

ADC0817CCN features: (1)Easy interface to all microprocessors; (2)Operates ratiometrically or with 5 VDC or analog span adjusted voltage reference; (3)16-channel multiplexer with latched control logic; (4)Outputs meet TTL voltage level specifications; (5)0V to 5V analog input voltage range with single 5V supply; (6)No zero or full-scale adjust required; (7)Standard hermetic or molded 40-pin DIP package; (8)Temperature range -40℃ to +85℃ or -55℃ to +125℃; (9)Latched TRI-STATE output; (10)Direct access to “comparator in” and “multiplexer out” for signal conditioning; (11)ADC0816 equivalent to MM74C948; (12)ADC0817 equivalent to MM74C948-1.
