Product Summary

The ADM3202ARU is a transceiver. The ADM3202ARU is a high speed, 2-channel RS-232/V.28 interface device which operates from a single +3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ ADM1385) makes them ideal for battery powered portable instruments. The ADM3202ARU conforms to the EIA- 232E and CCITT V.28 specifications and operates at data rates up to 460 kbps. Four external 0.1 uF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single +3.3 V supply.

Parametrics

ADM3202ARU absolute maximum ratings: 1)VCC: －0.3 V to +6 V; (2)V+: (VCC － 0.3 V)to +14 V; (3)V－ : +0.3 V to －14 V; (4)Operating Temperature Range Industrial (A Version): －40℃ to +85℃; (5)Storage Temperature Range: －65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): +300℃; (7)ESD Rating: <1500 V.

Features

ADM3202ARU features: (1)460 kbps Data Rate; (2)Specified at +3.3 V; (3)Meets EIA-232E Specifications; (4)0.1uF Charge Pump Capacitors; (5)Low Power Shutdown (ADM3222E and ADM1385); (6)DIP, SO, SOIC, SSOP and TSSOP Package Options; (7)Upgrade for MAX3222/32 and LTC1385.

Diagrams

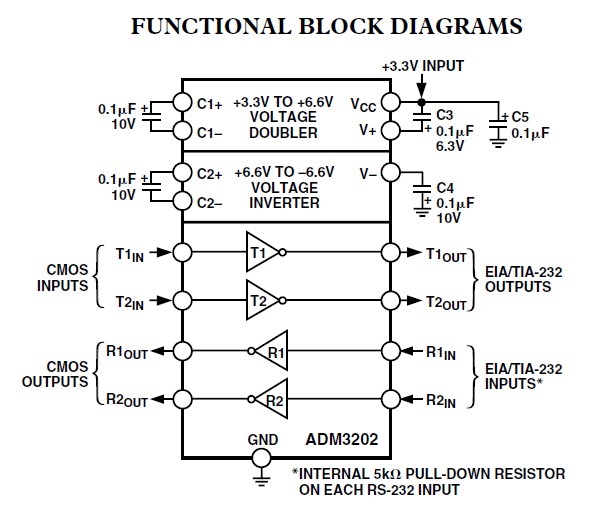

ADM3202ARU pin connection
