Product Summary

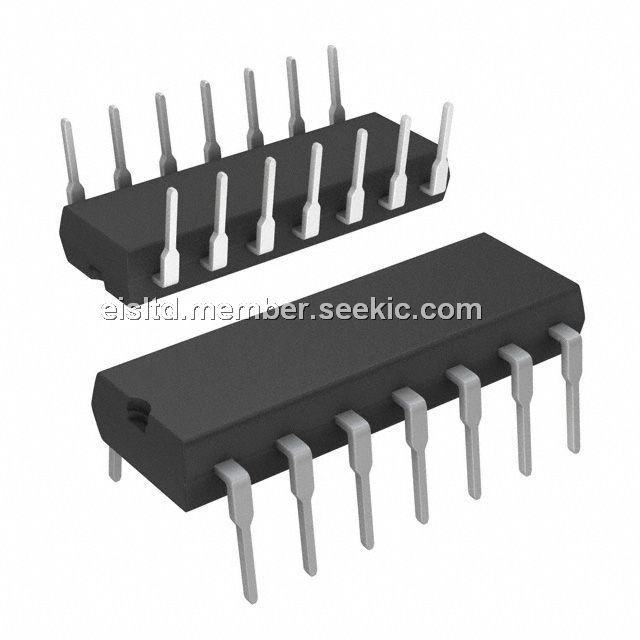

The LM566CN is a general purpose voltage controlled oscillator which may be used to generate square and triangular waves, the frequency of which is a very linear function of a control voltage. The frequency is also a function of an external resistor and capacitor. The LM566CN is specified for operation over the 0℃ to 70℃ temperature range. The applications of the LM566CN include FM modulation, Signal generation, Function generation, Frequency shift keying, Tone generation.

Parametrics

LM566CN absolute maximum ratings: (1)Power Supply Voltage: 26V; (2)Power Dissipation: 1000 mW; (3)Operating Temperature Range, LM566CN: 0℃ to 70℃; (4)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM566CN features: (1)Wide supply voltage range: 10V to 24V; (2)Very linear modulation characteristics; (3)High temperature stability; (4)Excellent supply voltage rejection; (5)10 to 1 frequency range with fixed capacitor; (6)Frequency programmable by means of current, voltage, resistor or capacitor.

Diagrams

LM566CN block diagram
