Product Summary
The LT1026CS8#TR is a switched capacitor voltage doubler and inverter on a single monolithic die. Capable of operating from a 4V to 10V input, it provides ±7V to ±8V output. Output currents of over 10mA are available. Two charge pumps first double the input voltage then invert the doubled voltage. Manufactured in bipolar technology, the LT1026CS8#TR is not susceptible to latchup and generates up to 36V. The applications of the LT1026CS8#TR include Line Drivers, Op Amp Suppliers, Battery Splitters, RS232 Power.
Parametrics
LT1026CS8#TR absolute maximum ratings: (1)Supply Voltage: 10V; (2)V+: 20V; (3)V-: -20V; (4)Short-Circuit Duration: 10 sec; (5)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1026CS8#TR features: (1)Generates + and-from Single Input; (2)Up to ±18V Output; (3)Only Needs Four 1mF Capacitors; (4)No Inductors; (5)10mA Output Current Minimum; (6)Operates Down to 4V; (7)No Latchup; (8)8-Pin Minidip.

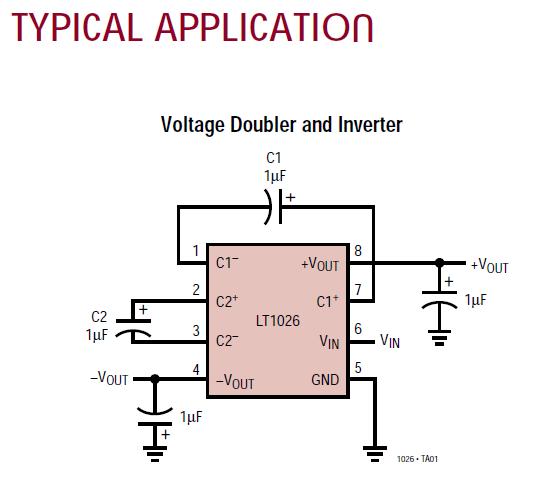

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1026CS8#TR |
|
IC REG SWITCHD CAP DBL INV 8SOIC |
Data Sheet |
|
|
||||||
|
LT1026CS8#TRPBF |
|
IC REG SWITCHD CAP DBL INV 8SOIC |
Data Sheet |
|
|
||||||
