Product Summary

The LT1212CS#TR is a dual, single supply precision op amp with a 14MHz gain-bandwidth product and a 7V/ms slew rate. The DC precision of the LT1212CS#TR eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers. The LT1212CS#TR will operate on any supply greater than 2.5V and less than 36V total. The LT1212CS#TR is specified on single 3.3V, single 5V and ±5V supplies, and only require 1.3mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 20mA, ideal for driving low impedance loads. The LT1212CS#TR applications are: (1)2.5V Full-Scale 12-Bit Systems: VOS ≦ 0.45LSB; (2)10V Full-Scale 16-Bit Systems: VOS ≦ 1.8LSB; (3)Active Filters; (4)Photo Diode Amplifiers; (5)DAC Current-to-Voltage Amplifiers; (6)Battery-Powered Systems.

Parametrics

LT1212CS#TR absolute maximum ratings: (1)Total Supply Voltage (V + to V -): 36V; (2)Input Current: ±15mA; (3)Output Short-Circuit Duration (Note 2): Continuous; (4)Storage Temperature Range: - 65℃ to 150℃.

Features

LT1212CS#TR features: (1) Low Input Noise Voltage: 12nV/√ ̄Hz Typ; (2) Low Input Noise Current: 0.2pA/√ ̄Hz Typ; (3) Specified on 3.3V, 5V and ±5V; (4) Large Output Drive Current: 20mA Min; (5) Low Supply Current per Amplifier: 1.8mA Max; (6) Dual in 8-Pin DIP and SO-8; (7) Quad in 14-Pin DIP and Narrow SO-16.

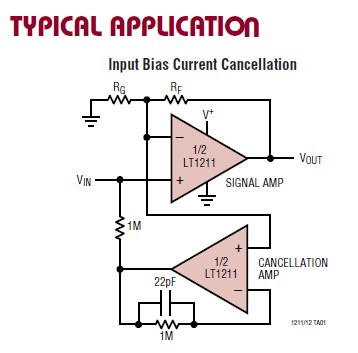

Diagrams

 LT1212CS#TR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1212CS#TR
LT1212CS#TR


IC OPAMP QUAD PREC 14MHZ 16SOIC

Data Sheet

0-2500: $3.60
LT1212CS#TRPBF
LT1212CS#TRPBF


IC PREC OP-AMP 14MHZ QUAD 16SOIC

Data Sheet

0-2500: $3.59
