Product Summary

The LT1352CS8#TR is an operational amplifier with outstanding AC and DC performance. The LT1352CS8#TR features much lower supply current and higher slew rate than devices with comparable bandwidth. The LT1352CS8#TR circuit combines the slewing performance of a current feedback amplifier in a true operational amplifier with matched high impedance inputs. The high slew rate ensures that the large-signal bandwidth is not degraded. Each output is capable of driving a 1kW load to ±13V with ±15V supplies and a 500W load to ±3.4V on ±5V supplies. The LT1352CS8#TR applications are: (1)Battery Powered Systems; (2)Wideband Amplifiers; (3)Buffers; (4)Active Filters; (5)Data Acquisition Systems; (6)Photodiode Amplifiers.

Parametrics

LT1352CS8#TR absolute maximum ratings: (1)Total Supply Voltage (V + to V -): 36V; (2)Differential Input Voltage (Transient Only, Note 2): ±10V; (3)Input Voltage : ±VS; (4)Output Short-Circuit Duration (Note 3): Indefinite; (5)Operating Temperature Range : -40℃ to 85℃; (6)Storage Temperature Range : -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1352CS8#TR features: (1)3MHz Gain Bandwidth; (2)200V/us Slew Rate; (3)250uA Supply Current per Amplifier; (4)C-Load Op Amp Drives All Capacitive Loads; (5)Unity-Gain Stable; (6)Maximum Input Offset Voltage: 600mV; (7)Maximum Input Bias Current: 50nA; (8)Maximum Input Offset Current: 15nA; (9)Minimum DC Gain, RL = 2k: 30V/mV.

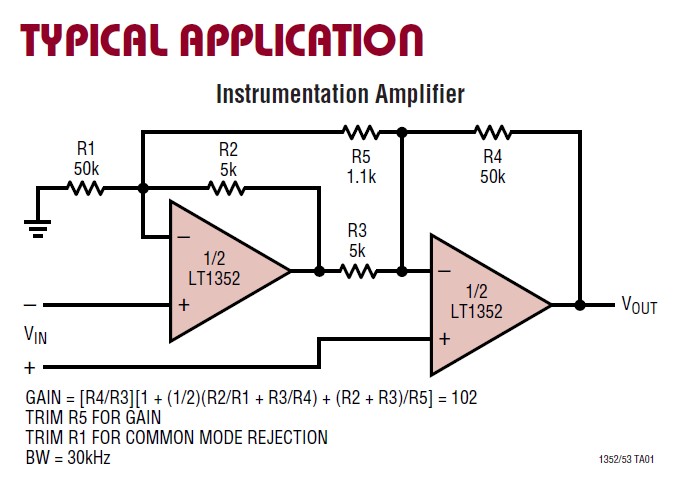

Diagrams

 LT1352CS8#TR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1352CS8#TR
LT1352CS8#TR


IC OPAMP DUAL 3MHZ HI SPD 8SOIC

Data Sheet

0-2500: $2.58
LT1352CS8#TRPBF
LT1352CS8#TRPBF


IC OP-AMP HI-SPD 3MHZ DUAL 8SOIC

Data Sheet

0-2500: $2.58
