Product Summary
The LT1886CS8#TR is a 200mA minimum output current dual op amp with outstanding distortion performance. The amplifier is gain-of-ten stable, but can be easily compensated for lower gains. The LT1886CS8#TR features balanced, high impedance inputs with 4μA maximum input bias current, and 4mV maximum input offset voltage. Single supply application of the LT1886CS8#TR is easy to implement and have lower total noise than current feedback amplifier implementations. The output drives a 25W load to ±4.3V with ±6V supplies. On ±2.5V supplies the output swings ±1.5V with a 100W load. The amplifier is stable with a 1000pF capacitive load which makes it useful in buffer and cable driver applications.
Parametrics
LT1886CS8#TR absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 13.2V; (2)Input Current: ±10mA; (3)Input Voltage: ±VS; (4)Maximum Continuous Output Current DC: ±100mA; (5)AC: ±300mA; (6)Operating Temperature Range: –40℃ to 85℃; (7)Specified Temperature Range: –40℃ to 85℃; (8)Maximum Junction Temperature: 150℃; (9)Storage Temperature Range: – 65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1886CS8#TR features: (1)700MHz GaiBandwidth; (2)±200mA Minimum IOUT; (3)Low Distortion: -72dBc at 1MHz, 4VP-P, 25W, AV = 2; (4)Stable iAV ≥10, Simple Compensatiofor AV < 10; (5)±4.3V Minimum Output Swing, VS = ±6V, RL = 25W; (6)7mA Supply Current per Amplifier; (7)200V/ms Slew Rate; (8)Stable with 1000pF Load; (9)6nV/Hz Input Noise Voltage; (10)2pA/Hz Input Noise Current; (11)4mV Maximum Input Offset Voltage; (12)4mA Maximum Input Bias Current; (13)400nA Maximum Input Offset Current; (14)Specified at ±6V, ±2.5V.

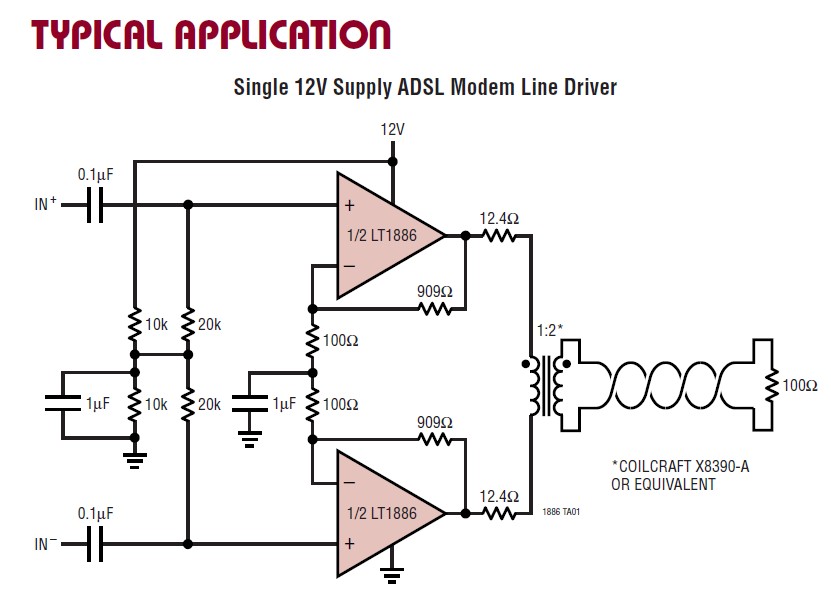

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1886CS8#TR |
|
IC OPAMP DUAL 200MA 700MHZ 8SOIC |
Data Sheet |
|
|
||||||
|
LT1886CS8#TRPBF |
|
IC OPAMP DUAL 200MA 700MHZ 8SOIC |
Data Sheet |
|
|
||||||
