Product Summary
The LTC1296CCSW#TR is a Single Chip 12-Bit Data Acquisition System which contains a serial I/O successive approximation A/D converter. It uses LTCMOSTM switched capacitor technology to perform either 12-bit unipolar, or 11-bit plus sign bipolar A/D conversions. The input multiplexer can be configured for either single ended or differential inputs (or combinations thereof). An on-chip sample and hold is included for all single ended input channels. When the LTC1296CCSW#TR is idle it can be powered down in applications where low power consumption is desired.
Parametrics
LTC1296CCSW#TR absolute maximum ratings: (1)Supply Voltage (VCC) to GND or V-: 12V; (2)Negative Supply Voltage (V–): -6V to GND; (3)Voltage, Analog and Reference, Inputs: (V-) -0.3V to VCC + 0.3V; (4)Digital Inputs: -0.3V to 12V; (5)Digital Outputs: -0.3V to VCC + 0.3V; (6)Power Dissipation: 500mW; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LTC1296CCSW#TR features: (1)Software Programmable Features, Unipolar/Bipolar Conversion; Differential/Single Ended Inputs; MSB-First or MSB/LSB Data Sequence; Power Shutdown; (2)Built-In Sample and Hold; (3)Single Supply 5V or ±5V Operation; (4)Direct 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports; (5)46.5kHz Maximum Throughput Rate; (6)System Shutdown Output (LTC1296).

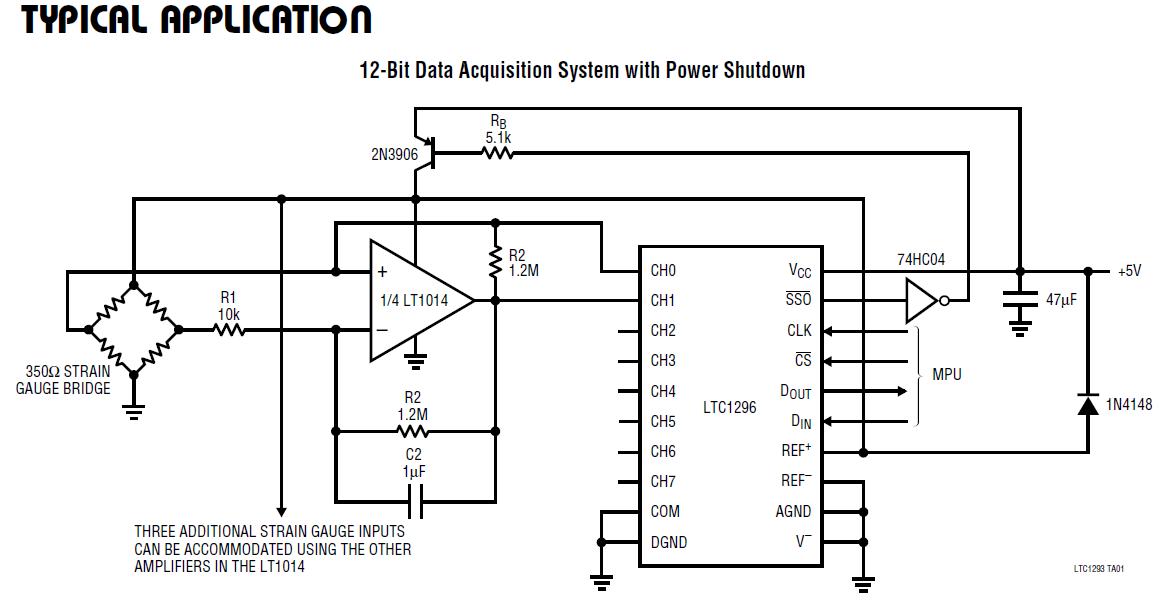

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1296CCSW#TR |
|
IC DATA ACQ SYS 12BIT 5V 20SOIC |
Data Sheet |
|
|
||||||
|
LTC1296CCSW#TRPBF |
|
IC DATA ACQ SYSTEM 12BIT 20-SOIC |
Data Sheet |
|
|
||||||
