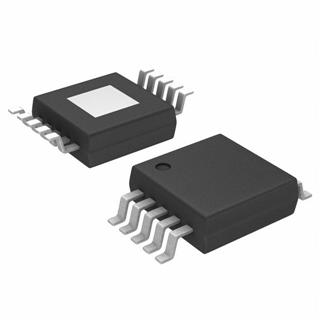

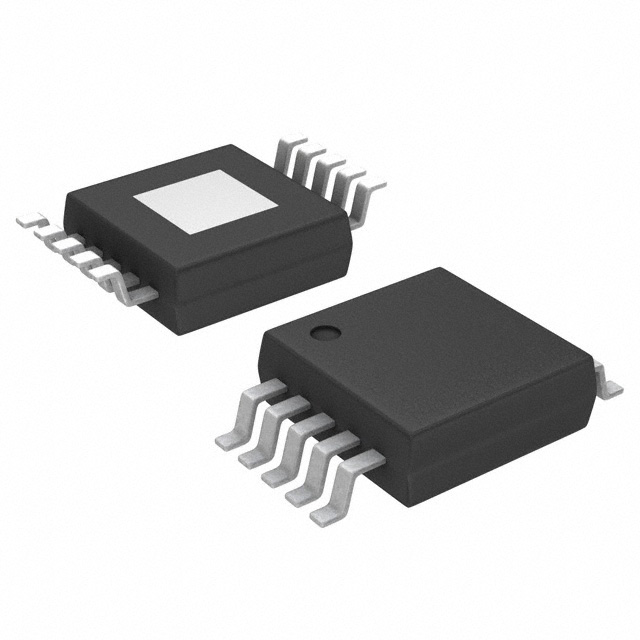

The LTC1407ACMSE#TR is a 14-bit, 3Msps ADC with two 1.5Msps simultaneously sampled differential inputs. The device draws only 4.7mA from a single 3V supply and come in a tiny 10-lead MS package. A Sleep shutdown feature lowers power consumption to 10mW. The combination of speed, low power and tiny package makes the LTC1407ACMSE#TR suitable for high speed, portable applications. The applications of the LTC1407ACMSE#TR include Telecommunications, Data Acquisition Systems, Uninterrupted Power Supplies, Multiphase Motor Control, I & Q Demodulation, Industrial Control.
Parametrics
LTC1407ACMSE#TR absolute maximum ratings: (1)Supply Voltage (VDD): 4V; (2)Analog Input Voltage: -0.3V to (VDD + 0.3V); (3)Digital Input Voltage: -0.3V to (VDD + 0.3V); (4)Digital Output Voltage: -0.3V to (VDD + 0.3V); (5)Power Dissipation: 100mW; (6)Operation Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1407ACMSE#TR features: (1)3Msps Sampling ADC with Two Simultaneous Differential Inputs; (2)1.5Msps Throughput per Channel; (3)Low Power Dissipation: 14mW (Typ); (4)3V Single Supply Operation; (5)2.5V Internal Bandgap Reference with External Overdrive; (6)3-Wire Serial Interface; (7)Sleep (10mW) Shutdown Mode; (8)Nap (3mW) Shutdown Mode; (9)80dB Common Mode Rejection at 100kHz; (10)0V to 2.5V Unipolar Input Range; (11)Tiny 10-Lead MS Package.

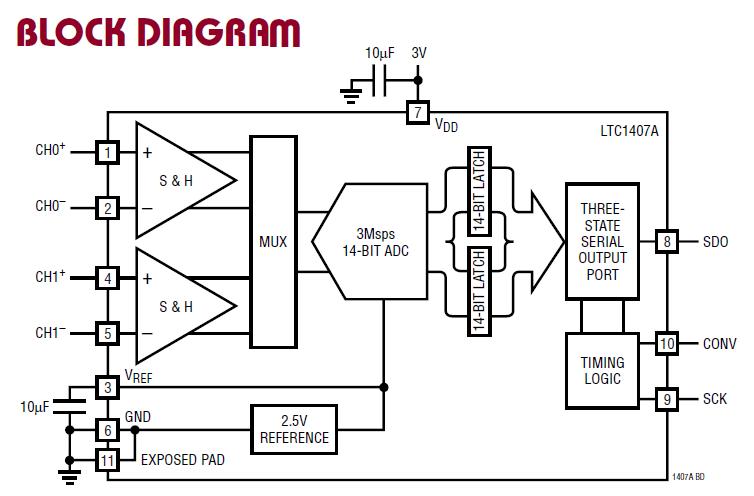

Diagrams
