The MIC4452BM is a 12A-peak low-side mosfet driver bipolar. The MIC4452BM is tough, efficient, and easy to use. The MIC4452BM can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly cost. The MIC4452BM applications are: (1)Switch Mode Power Supplies; (2)Motor Controls; (3)Pulse Transformer Driver; (4)Class-D Switching Amplifiers; (5)Line Drivers; (6)Driving MOSFET or IGBT Parallel Chip Modules; (7)Local Power ON/OFF Switch; (8)Pulse Generators.
Parametrics
MIC4452BM absolute maximum ratings: (1)Supply Voltage : 20V; (2)Input Voltage : VS + 0.3V to GND －5V; (3)Input Current (VIN > VS): 50 mA; (4)Power Dissipation, TAMBIENT ≦ 25℃ PDIP : 960mW, SOIC : 1040mW, 5-Pin TO-220 : 2W; (5)Power Dissipation, TCASE ≦ 25℃ 5-Pin TO-220 : 12.5W.
Features
MIC4452BM features: (1)Matched Rise and Fall Times : 25ns; (2)High Peak Output Current : 12A Peak; (3)Wide Operating Range : 4.5V to 18V; (4)High Capacitive Load Drive : 62,000pF; (5)Low Delay Time : 30ns Typ.; (6)Logic High Input for Any Voltage from 2.4V to VS; (7)Low Supply Current : 450mA With Logic 1 Input; (8)Low Output Impedance : 1.0W; (9)Output Voltage Swing to Within 25mV of GND or VS; (10)Low Equivalent Input Capacitance (typ): 7pF.

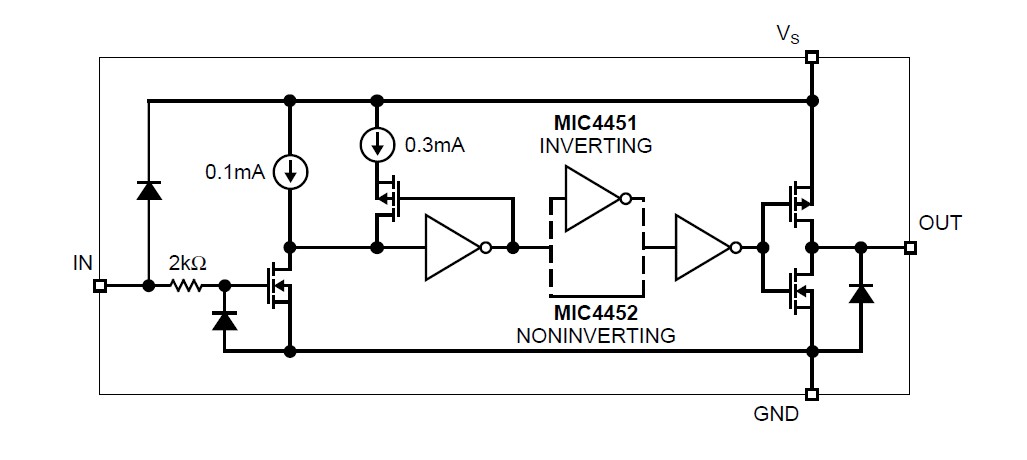

Diagrams
