Product Summary

The STPS20H100CFP is a high voltage power schottky rectifier. The STPS20H100CFP is designed for high frequency miniature Switched Mode Power Supplies such as adaptators and on board DC/DC converters.

Parametrics

STPS20H100CFP absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 100 V; (2)RMS forward current, IF(RMS): 30 A; (3)Average forward current, TO-220AB, D2PAK / I2PAK, Tc = 155℃ Per diode, IF(AV): 10 A; TO-220FPAB, Tc = 135℃ Per device, IF(AV): 20 A; (4)Surge non repetitive forward current, tp = 10 ms sinusoidal, IFSM: 250 A; (5)Repetitive peak reverse current, tp = 2μs square, F = 1kHz, IRRM: 1A; (6)Non repetitive peak reverse current, tp = 100 ms square, IRSM: 3A; (7)Storage temperaturerange, Tstg: -65 to +175℃; (8)Maximum operating junction temperature, Tj: 175℃; (9)Critical rate of rise of reverse voltage, dV/dt: 10000 V/μs.

Features

STPS20H100CFP features: (1)negligible switching losses; (2)high junction temperature capability; (3)good trade off between leakage current and forward voltage drop; (4)low leakage current; (5)avalanche rated; (6)insulated packagE: ISOWATT220AB, TO-220FPAB, Insulating Voltage = 2000V DC, Capacitance = 45 pF; (7)avalanche capability specified.

Diagrams

STPS20H100CFP circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

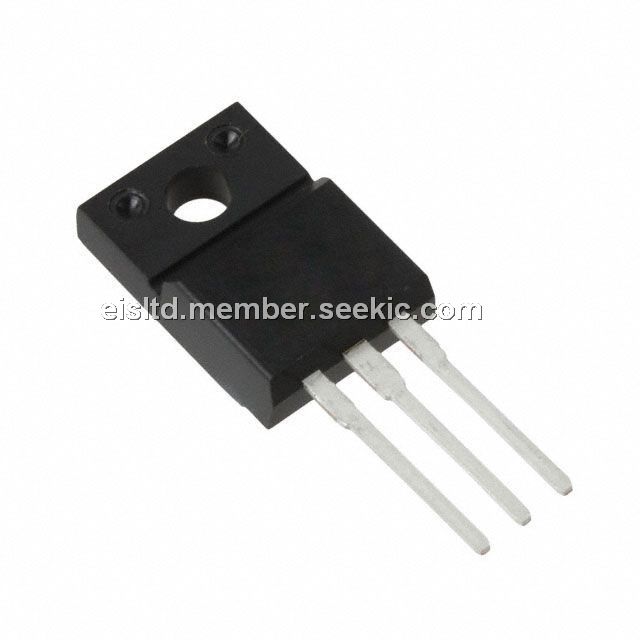

STPS20H100CFP
STPS20H100CFP
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X10 Amp 100 Volt
Data Sheet
0-1: $1.23
1-10: $1.10
10-100: $0.97
100-250: $0.87
