Product Summary
The 25LC256-I/SN is a 256k-bit Serial Electrically Erasable PROM. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the 25LC256-I/SN is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD). The 25LC256-I/SN is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead DFN and 8-lead TSSOP. Pb-free (Pure Sn) finish is also available.
Parametrics
25LC256-I/SN absolute maximum ratings: (1)VCC:6.5V; (2)All inputs and outputs w.r.t. VSS:-0.6V to VCC +1.0V; (3)Storage temperature:-65℃ to 150℃; (4)Ambient temperature under bias:-40℃ to 125℃; (5)ESD protection on all pins:4 kV.
Features
25LC256-I/SN features: (1)Max. clock 10 MHz; (2)Low-power CMOS technology: Max. Write Current: 5 mA at 5.5V, 10 MHz, Read Current: 5 mA at 5.5V, 10 MHz, Standby Current: 1 μA at 5.5V; (3)32,768 x 8-bit organization; (4)64 byte page; (5)Self-timed ERASE and WRITE cycles (5 ms max.); (6)Block write protection: Protect none, 1/4, 1/2 or all of array; (7)Built-in write protection: Power-on/off data protection circuitry, Write enable latch, Write-protect pin; (8)Sequential read; (9)High reliability: Endurance: 1,000,000 erase/write cycles, Data retention: ＞ 200 years, ESD protection: ＞ 4000V; (10)Temperature ranges supported:Industrial (I): -40℃ to +85℃, Automotive (E): -40℃ to +125℃; (11)Standard and Pb-free packages available.

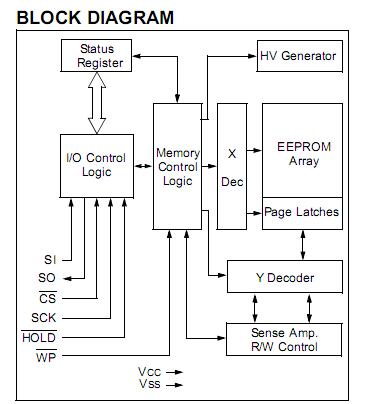

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 25LC256-I/SN |
Microchip Technology |
EEPROM 32kx8 - 2.5V |
Data Sheet |
|
|
||||||||||||
|
25LC256-I/SNG |
Microchip Technology |
EEPROM 32kx8 - 2.5V Lead Free Package |
Data Sheet |
Negotiable |
|
||||||||||||
