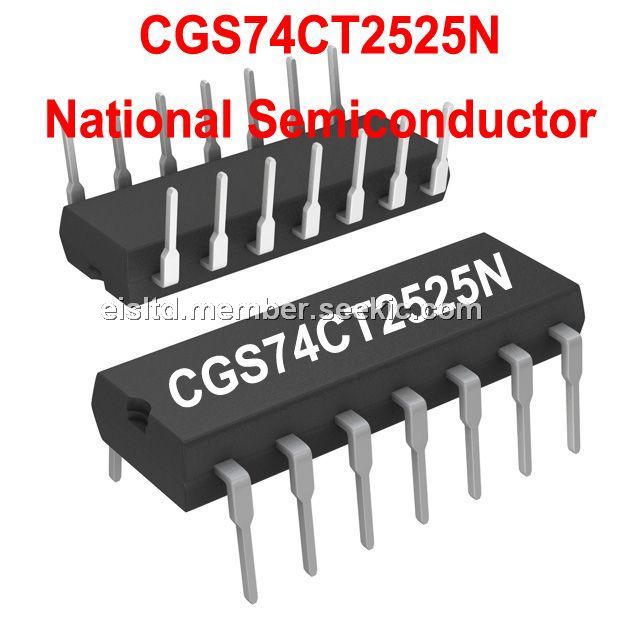

CGS74CT2525N/NOPB

minimum skew clock driver, DIP-14, -0.5V to +7.0V, -20 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~1.60

PartNumber:: CGS74CT2525N/NOPB

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-12

From Other Seller

Part Number:CGS74CT2525N/NOPB
US $1.20 - 1.60
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CGS74CT2525N/NOPB is a minimum skew clock driver with one input driving eight outputs specifically designed for signal generation and clock distribution applications. The CGS74CT2525N/NOPB is designed to distribute a single clock to eight separate receivers with low skew across all outputs during both the tPLH and tPHL transitions.

Parametrics

CGS74CT2525N/NOPB absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK): -20 mA at VI=-0.5V, +0.2 mA at VI=VCC +0.5V; (3)DC Input Voltage (VI): -0.5V to (VCC +0.5V); (4)DC Output Diode Current (IOK): -20 mA at VO=0.5V, +20 mA at VO=VCC +0.5V; (5)DC Output Voltage (VO): -0.5V to (VCC +0.5V); (6)DC Output Source or Sink Current (IO) g50 mA; (7)DC VCC or Ground Current; (8)per Output Pin (ICC or IGND): ±50 MA; (9)Storage Temperature (TSTG): -65℃ to +150℃.

Features

CGS74CT2525N/NOPB features: (1)These CGS devices implement Nationa’s FACTTM family; (2)Ideal for signal generation and clock distribution; (3)Guaranteed pin to pin and part to part skew; (4)Multiplexed clock input (2526); (5)Guaranteed 2 kV minimum ESD protection; (6)Symmetric output current drive of 24 mA for IOL/IOH; (7)CT has TTL-compatible inputs; (8)These products are identical to 74AC/ACT2525 and 2526.
