Product Summary
The AD7249BRZ is a 12-bit, voltage output, digital-to-analog converter with output amplifiers and Zener voltage reference on a monolithic CMOS chip. No external trims are required to achieve full specified performance. The AD7249BRZ is capable of developing +10 V across a 2 kΩ load. The output voltage ranges with single supply operation are 0 V to +5 V or 0 V to +10 V, while an additional bipolar ±5 V output range is available with dual supplies. The ranges are selected using the internal gain resistor. The applications of the AD7249BRZ include Process Control, Industrial Automation, Digital Signal Processing Systems, Input/Output Ports.
Parametrics
AD7249BRZ absolute maximum ratings: (1)VDD to AGND, DGND: -0.3 V to +17 V; (2)VSS to AGND, DGND: +0.3 V to -17 V; (3)AGND to DGND: -0.3 V to VDD + 0.3 V; (4)VOUTA, B 2 to AGND: VSS -0.3 V to VDD + 0.3 V; (5)REFOUT to AGND: 0 V to VDD; (6)REFIN to AGND: -0.3 V to VDD +0.3 V; (7)Digital Inputs to DGND: -0.3 V to VDD + 0.3 V; (8)Operating Temperature Range, Industrial (A, B Versions): -40℃ to +85℃; Extended (S Version): -55℃ to +125℃; (9)Junction Temperature: +150℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Power Dissipation Plastic DIP: 600 mW; (12)θJA Thermal Impedance: +117℃/W; (13)Lead Temperature (Soldering, 10 secs): +300℃; (14)Power Dissipation, Cerdip: 600 mW; (15)θJA Thermal Impedance: 76℃/W; (16)Lead Temperature (Soldering, 10 secs): +300℃; (17)Power Dissipation, SOIC: 600 mW; (18)θJA Thermal Impedance: 75℃/W; (19)Lead Temperature (Soldering), Vapor Phase (60 secs): +215℃; Infrared (15 secs): +220℃.
Features
AD7249BRZ features: (1)Two 12-Bit CMOS DAC Channels with On-Chip Voltage Reference; Output Amplifiers; (2)Three Selectable Output Ranges per Channel: -5 V to +5 V, 0 V to +5 V, 0 V to +10 V; (3)Serial Interface; (4)125 kHz DAC Update Rate; (5)Small Size: 16-Lead DIP or SOIC; (6)Low Power Dissipation.

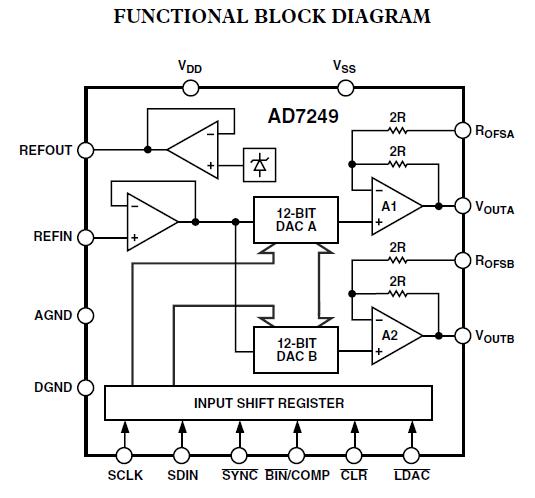

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7249BRZ |
|
IC DAC 12BIT SRL W/REF 16SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD7249BRZ-REEL |
|
IC DAC 12BIT SRL W/REF 16SOIC |
Data Sheet |
|
|
||||||||||||||||
