Product Summary

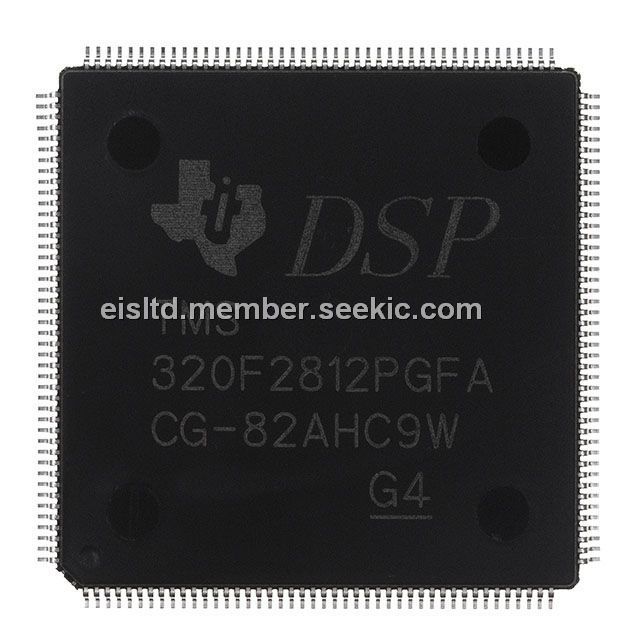

The TMS320F2812PGFA is a digital signal processor.
Parametrics
TMS320F2812PGFA absolute maximum ratings: (1)Supply voltage range, VDD, PLLVCCA, VDDO, and VCCA: - 0.3 V to 4.6 V; (2)Supply voltage range, CVDD: - 0.5 V to 2 V; (3)VCCP range: - 0.3 V to 3.6 V; (4)Input voltage range, VIN: - 0.3 V to 4.6 V; (5)Output voltage range, VO: - 0.3 V to 4.6 V; (6)Output voltage range,VO: - 0.3 V to 4.6 V; (7)Input clamp current, IIK (VIN < 0 or VIN > VCC): ± 20 mA; (8)Output clamp current, IOK (VO < 0 or VO > VCC): ± 20 mA; (9)Operating free-air temperature ranges, TA: A version: - 40℃ to 85℃; (10)S version: - 40℃ to 125℃; (11)Junction temperature range, TJ: - 40℃ to 150℃; (12)Storage temperature range, Tstg: - 65℃ to 150℃.
Features
TMS320F2812PGFA features: (1)High-Performance Static CMOS Technology; (2)High-Performance CPU (C28x); (3)On-Chip Memory; (4)Boot ROM (4K x 16); (5)External Interface; (6)Clock and System Control; (7)Three External Interrupts; (8)128-Bit Security Key/Lock; (9)Three 32-Bit CPU-Timers; (10)12-Bit ADC, 16 Channels; (11)Low-Power Modes and Power Savings.

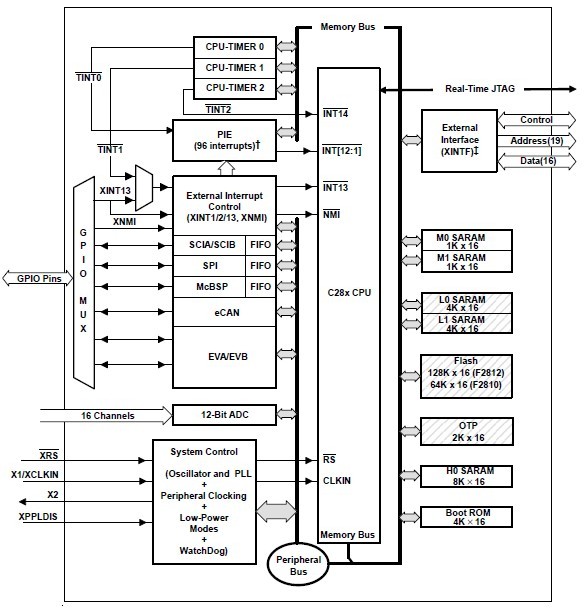

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320F2812PGFA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 32-Bit Digital Sig Controller w/Flash |
Data Sheet |
|
|
||||||||||||
