Product Summary
The AD7866BRUZ is a dual 12-bit high-speed, low power, successive approximation ADC. The AD7866BRUZ operates from a single 2.7 V to 5.25 V power supply and features throughput rates up to 1 MSPS. The device contains two ADCs, each preceded by a low-noise, wide bandwidth track/hold amplifier which can handle input frequencies in excess of 10 MHz. The conversion process and data acquisition are controlled using standard control inputs allowing easy interfacing to microprocessors or DSPs.
Parametrics
AD7866BRUZ absolute maximum ratings: (1)AVDD to AGND: -0.3 V to +7 V; (2)DVDD to DGND: -0.3 V to +7 V; (3)VDRIVE to DGND: -0.3 V to DVDD +0.3 V; (4)VDRIVE to AGND: -0.3 V to AVDD +0.3 V; (5)AVDD to DVDD: -0.3 V to +0.3 V; (6)AGND to DGND: -0.3 V to +0.3 V; (7)Analog Input Voltage to AGND: -0.3 V to AVDD +0.3 V; (8)Digital Input Voltage to DGND: -0.3 V to +7 V; (9)VREF to AGND: -0.3 V to AVDD + 0.3 V; (10)Digital Output Voltage to DGND . . –0.3 V to VDRIVE + 0.3 V; (11)Input Current to Any Pin Except Supplies2: ±10 mA; (12)Operating Temperature Range, Commercial (A, B Versions): -40℃ to +85℃; (13)Storage Temperature Range: -65℃ to +150℃; (14)Junction Temperature: 150℃; (15)TSSOP Package, Power Dissipation: 450 mW.
Features
AD7866BRUZ features: (1)Dual 12-Bit, 2-Channel ADC; (2)Fast Throughput Rate 1 MSPS; (3)Specified for VDD of 2.7 V to 5.25 V; (4)Low Power, 11.4 mW Max at 1 MSPS with 3 V Supplies; 24 mW Max at 1 MSPS with 5 V Supplies; (5)Wide Input Bandwidth, 70 dB SNR at 300 kHz Input Frequency; (6)Onboard Reference 2.5 V; (7)Flexible Power/Throughput Rate Management; (8)Simultaneous Conversion/Read; (9)No Pipeline Delays; (10)High-Speed Serial Interface SPITM/QSPITM/MICROWIRETM/DSP Compatible; (11)Shut-Down Mode, 1 μA Max; (12)20-Lead TSSOP Package.

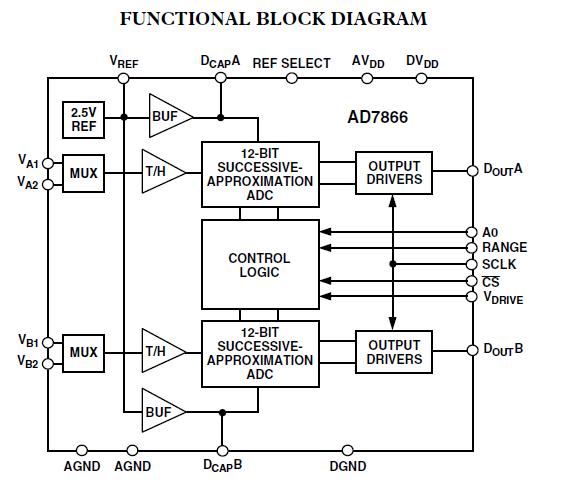

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

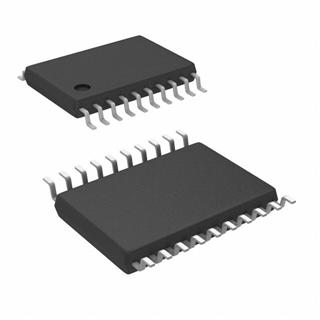

 AD7866BRUZ |
|
IC ADC 12BIT 2CH DUAL 20-TSSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD7866BRUZ-REEL |
|
IC ADC 12BIT 2CHAN DUAL 20TSSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD7866BRUZ-REEL7 |
|
IC ADC 12BIT 2CHAN DUAL 20TSSOP |
Data Sheet |
|
|
||||||||||||||||
