Product Summary
The AD7892ARZ-3REEL is a high speed, low power, 12-bit A/D converter that operates from a single +5 V supply. The part contains a 1.47 μs successive approximation ADC, an on-chip track/hold amplifier, an internal +2.5 V reference and on-chip versatile interface structures that allow both serial and parallel connection to a microprocessor. The part accepts an analog input range of ±10 V or ±5 V (AD7892-1), 0 V to +2.5 V (AD7892-2) and ±2.5 V (AD7892-3). Overvoltage protection on the analog inputs for the AD7892ARZ-3REEL allows the input voltage to go to ±17 V or ±7 V respectively without damaging the ports.
Parametrics
AD7892ARZ-3REEL absolute maximum ratings: (1)VDD to AGND: -0.3 V to +7 V; (2)VDD to DGND: -0.3 V to +7 V; (3)Analog Input Voltage to AGND, AD7892-1: ±17 V; (4)Reference Input Voltage to AGND: -0.3 V to VDD + 0.3 V; (5)Digital Input Voltage to DGND: -0.3 V to VDD + 0.3 V; (6)Digital Output Voltage to DGND: -0.3 V to VDD + 0.3 V; (7)Operating Temperature Range, Commercial (A, B Versions): -40℃ to +85℃; Extended (S Version): -55℃ to +125℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature: +150℃; (10)Plastic DIP Package, Power Dissipation: 450 mW.
Features
AD7892ARZ-3REEL features: (1)Fast 12-Bit ADC with 1.47 s Conversion Time; (2)600 kSPS Throughput Rate (AD7892-3); (3)500 kSPS Throughput Rate (AD7892-1, AD7892-2); (4)Single Supply Operation; (5)On-Chip Track/Hold Amplifier; (6)Selection of Input Ranges: ±10 V or ±5 V for AD7892-1; 0 V to +2.5 V for AD7892-2; ±2.5 V for AD7892-3; (7)High Speed Serial and Parallel Interface; (8)Low Power, 60 mW typ; (9)Overvoltage Protection on Analog Inputs (AD7892-1 and AD7892-3).

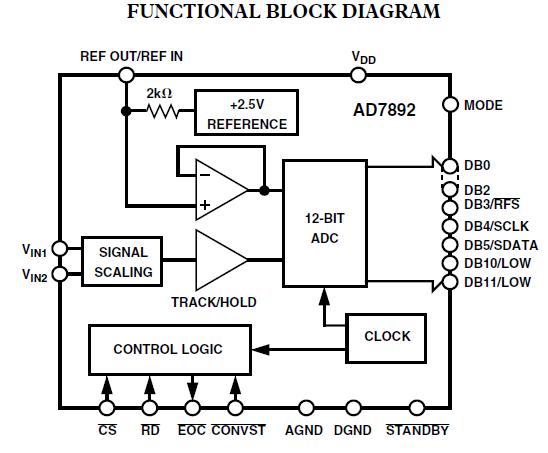

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7892ARZ-3REEL |
|
IC ADC 12BIT LP 600KSPS 24SOIC |
Data Sheet |
|
|
||||||
|
AD7892ARZ-3REEL7 |
|
IC ADC 12BIT LP 600KSPS 24SOIC |
Data Sheet |
Negotiable |
|
||||||
