Product Summary
The TMS320LF2401AVFA is a 16-Bit DSP controller.
Parametrics
TMS320LF2401AVFA absolute maximum ratings: (1)Program Memory Size 16KB (8K x 16); (2)RAM Size 2K x 8; (3)Number of I /O: 13; (4)Package / Case: 32-LQFP; (5)Speed: 40MHz; (6)Oscillator Type: Internal; (7)Packaging: Tray; (8)Program Memory Type: FLASH; (9)Core Processor: C2xx DSP; (10)Data Converters: A/D 5x10b; (11)Core Size: 16-Bit ; (12)Operating Temperature: -40℃ ~ 85℃; (13)Connectivity: SCI; (14)Peripherals: POR, PWM, WDT; (15)Voltage Supply (Vcc/Vdd): 3 V ~ 3.6 V; (16)Lead Free Status: Lead Free; (17)RoHS Status: RoHS Compliant.
Features
TMS320LF2401AVFA features: (1)High-Performance Static CMOS Technology; (2)Based on TMS320C2xx DSP CPU Core; (3)On-Chip Memory; (4)Boot ROM. SCI Bootloader; (5)Event-Manager (EV) Module; (6)Small Foot-Print (7 mm x 7 mm) Ideally Suited for Space-Constrained Applications; (7)Watchdog (WD) Timer Module; (8)10-Bit Analog-to-Digital Converter (ADC).

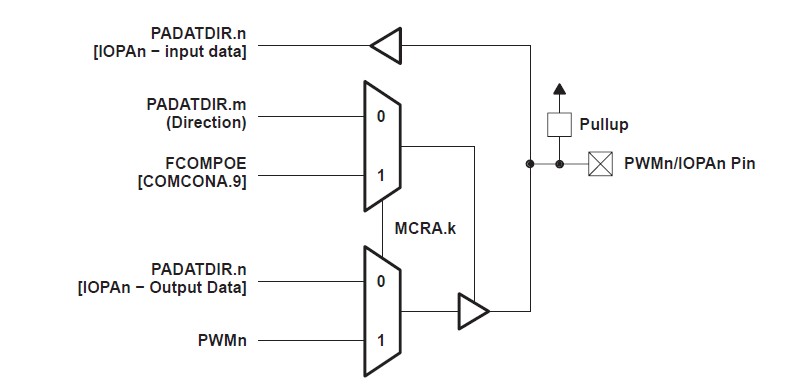

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS320LF2401AVFA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Controller |
Data Sheet |
|
|
|||||||||||||
