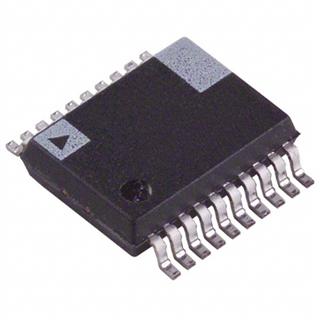

AD7945ARSZ-BREEL

AD7945ARSZ-BREEL, fast 12-bit multiplying DAC, SSOP20, 6V, 670mW, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: AD7945ARSZ-BREEL

Brand:: Analog Devices - ADI | Pack: SSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD7945ARSZ-BREEL
US $0.15 - 2.40
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD7945ARSZ-BREEL is a fast 12-bit multiplying DAC that operates from a single +5 V supply (Normal Mode) and a single +3.3 V to +5 V supply (Biased Mode). The AD7945ARSZ-BREEL has a 12-bit parallel interface. It will replace the industry-standard AD7945ARSZ-BREEL in many applications, and it offers superior speed and power consumption performance. The AD7945ARSZ-BREEL is available in 20-lead DIP, 20-lead SOP and 20-lead SSOP. The applications of the device include Battery-Powered Instrumentation, Laptop Computers, Upgrades for All 754x Series DACs (5 V Designs).

Parametrics

AD7945ARSZ-BREEL absolute maximum ratings: (1)VDD to DGND: -0.3 V to +6 V; (2)IOUT1 to DGND: -0.3 V to VDD +0.3 V; (3)IOUT2 to DGND: -0.3 V to VDD +0.3 V; (4)AGND to DGND: -0.3 V to VDD +0.3 V; (5)Digital Input Voltage to DGND: -0.3 V to VDD +0.3 V; (6)VRFB, VREF to DGND: ±15 V; (7)Input Current to Any Pin Except Supplies2: ±10 mA; (8)Operating Temperature Range; (9)Industrial (A, B Versions): -40℃ to +85℃; (10)Extended (T Version): -55℃ to +125℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Junction Temperature: +150℃; (13)DIP Package, Power Dissipation: 670 mW.

Features

AD7945ARSZ-BREEL features: (1)12-Bit Multiplying DACs; (2)Guaranteed Specifications with +3.3 V/+5 V Supply; (3)0.5 LSBs INL and DNL; (4)Low Power: 5 mW typ; (5)Fast Interface, 40 ns Write Pulsewidth (AD7945, AD7948); (6)Low Glitch: 60 nV-s with Amplifier Connected; (7)Fast Settling: 600 ns to 0.01% with AD843.
