AD8055AR

AD8055AR, SOP, low cost, 300 MHz voltage feedback amplifier, 13.2 V, ±2.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: AD8055AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD8055AR
US $0.15 - 2.40
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD8055AR is a low cost voltage feedback amplifier. The AD8055AR voltage feedback amplifiers offer bandwidth and slew rate typically found in current feedback amplifiers. Additionally, these amplifiers are easy to use and available at a very low cost. Despite their low cost, the AD8055AR provides excellent overall performance. The AD8055AR requires only 5 mA typ/amplifier of

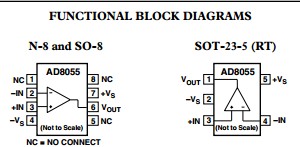

supply current and operate on dual ±5 V or single +12 V power supply, while being capable of delivering over 60 mA of load current. All this is offered in a small 8-lead plastic DIP, 8-lead SOIC packages, 5-lead SOT-23-5 package (AD8055) and an 8-lead microSOIC package (AD8056). These features make the AD8055ARideal for portable and battery powered applications where size and power are critical. These amplifiers are available in the industrial temperature range of –40°C to +85°C. The AD8055AR can be applied in imaging, photodiode preamp, video line driver, differential line driver, professional cameras, video switchers, special effects, A-to-D Driver, and active filters.

Parametrics

AD8055AR absolute maximum ratings: (1)Supply Voltage: 13.2 V; (2)Internal Power Dissipation2: Plastic DIP Package (N): 1.3 W; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±2.5 V; (5)Output Short Circuit Duration: Observe Power Derating Curves; (6)Storage Temperature Range N, R: -65°C to +125°C; (7)Operating Temperature Range (A Grade): -40°C to +85°C; (8)Lead Temperature Range (Soldering 10 sec): +300°C.

Features

AD8055AR features: (1)low cost single (AD8055) and dual (AD8056); (2)easy to use voltage feedback architecture; (3)high speed; (4)small packaging; (5)excellent video specifications; (6)low power, ±5 v supplies; (7)high output drive current: over 60 mA.
