Product Summary
The ADC08038CIWM is an 8-bit successive approximation A/D converter with serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the NSC MICROWIRE serial data exchange standard for easy interface to the COPS. family of controllers, and can easily interface with standard shift registers or microprocessors. The ADC08038CIWM provides a 2.6V band-gap derived reference. For devices offering guaranteed voltage reference performance over temperature see ADC08131, ADC08134 and ADC08138. The applications of the ADC08038CIWM include Digitizing automotive sensors, Process control monitoring, Remote sensing in noisy environments, Instrumentation.
Parametrics
ADC08038CIWM absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Voltage at Inputs and Outputs: -0.3V to VCC + 0.3V; (3)Input Current at Any Pin: ±5 mA; (4)Package Input Current: ±20 mA; (5)Power Dissipation at TA = 25℃: 800 mW; (6)ESD Susceptibility: 1500V.
Features
ADC08038CIWM features: (1)Serial digital data link requires few I/O pins; (2)Analog input track/hold function; (3)2-, 4-, or 8-channel input multiplexer options with address logic; (4)0V to 5V analog input range with single 5V power supply; (5)No zero or full scale adjustment required; (6)TTL/CMOS input/output compatible; (7)On chip 2.6V band-gap reference; (8)0.3" standard width 8-, 14-, or 20-pin DIP package; (9)14-, 20-pin small-outline packages.

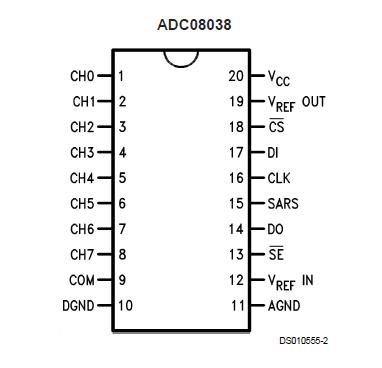

Diagrams
