Product Summary

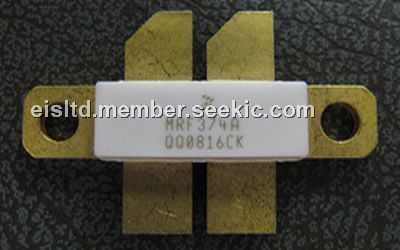

The MRF374A is a RF Power Field-Effect Transistor. The MRF374A is designed for broadband commercial and industrial applications with frequencies from 470 to 860 MHz. The high gain and broadband performance of this device makes the MRF374A ideal for large - signal, common source amplifier applications in 28/32 volt transmitter equipment.
Parametrics
MRF374A absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5, +70 Vdc; (2)Gate-Source Voltage VGS: -0.5, +15 Vdc; (3)Total Device Dissipation @ TC = 25℃, PD: 302W; Derate above 25℃: 1.72W/℃; (4)Storage Temperature Range, Tstg: -65 to +150℃; (5)Case Operating Temperature, TC: 150℃; (6)Operating Junction Temperature, TJ: 200℃.
Features
MRF374A features: (1)Integrated ESD Protection; (2)Excellent Thermal Stability; (3)Characterized with Differential Large-Signal Impedance Parameters; (4)RoHS Compliant.

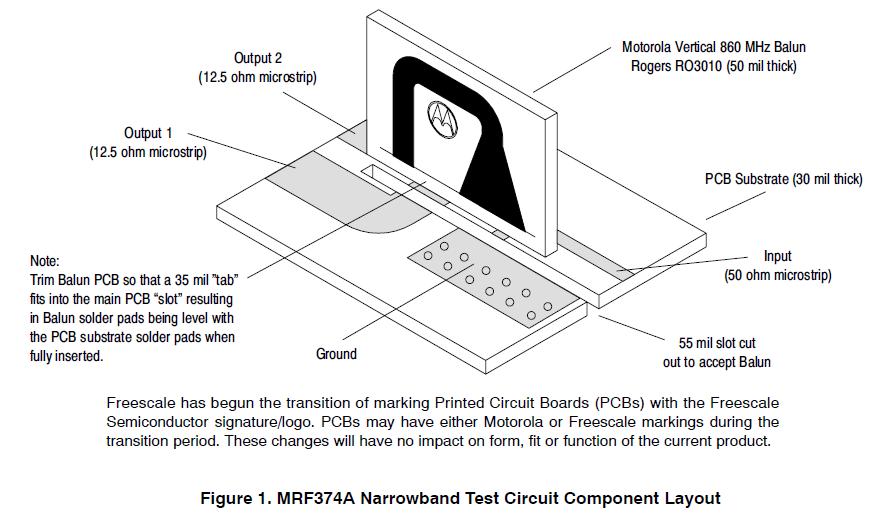

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF374A |
Freescale Semiconductor |
Transistors RF MOSFET Power RF POWER LDMOS U650 |
Data Sheet |
Negotiable |
|
||||
