ADIS16203CCCZ

complete incline-angle measurement system, 7.0 V, LCC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: ADIS16203CCCZ

Brand:: Analog Devices - ADI | Pack: LCC | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ADIS16203CCCZ
US $0.15 - 2.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

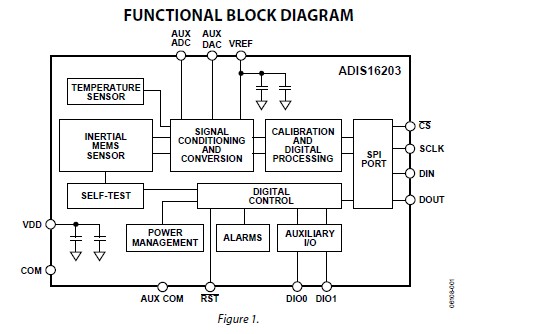

The ADIS16203CCCZ is a complete incline-angle measurement system in a single compact package enabled by the Analog Devices, Inc., iSensorTM integration. By enhancing the Analog Devices iMEMS sensor technology with an embedded signal processing solution, the ADIS16203CCCZ provides factory-calibrated, sensor-to-digital incline- angle data in a convenient format that can be accessed using a serial peripheral interface (SPI). The SPI interface provides access to multiple measurements: 360° linear inclination angles, ±180° linear incline angles, temperature, power supply, and one auxiliary analog input. Easy access to calibrated digital sensor data provides developers with a system-ready device, reducing development time, cost, and program risk.

Parametrics

ADIS16203CCCZ absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 3500 g ; (2)Acceleration (Any Axis, Powered): 3500 g ; (3)VDD to COM: －0.3 V to +7.0 V ; (4)Digital Input/Output Voltage to COM: －0.3 V to +5.5 V; (5)Analog Inputs to COM: －0.3 V to VDD + 0.3 V ; (6)Operating Temperature Range: －40℃to +125℃; (7)Storage Temperature Range: －65℃to +150℃.

Features

ADIS16203CCCZ features: (1)Digitally controlled bias calibration; (2)Digitally controlled sample rate; (3)Digitally controlled filtering; (4)Digitally controlled direction/orientation; (5)Dual alarm settings with rate/threshold limits; (6)Auxiliary digital I/O; (7)Digitally activated self-test; (8)Digitally activated low power mode; (9)SPI-compatible serial interface; (10)Auxiliary 12-bit ADC input and DAC output; (11)Single-supply operation: 3.0 V to 3.6 V; (12)3500 g powered shock survivability.
