Product Summary
The AT26DF081A-SSU is a minimum SPI serial flash memory. It is designed for use in a wide variety of high-volume consumer-based applications in which program code is shadowed from flash memory into embedded or external RAM for execution.
Parametrics
AT26DF081A-SSU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 4.1V; (4)all output voltages with respect to ground: -0.6 to VCC+0.5V.
Features
AT26DF081A-SSU features: (1)single 2.7 to 3.6V supply; (2)serial peripheral interface compatible; (3)70MHz maximum clock frequency; (4)flexible, uniform erase architecture; (5)individual sector protection with global protect/unprotect feature; (6)hardware controlled locking of protected sectors.

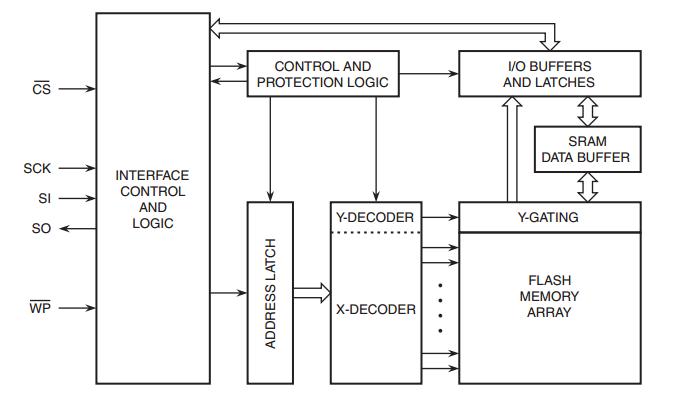

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT26DF081A-SSU |
Atmel |
Flash 8M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
AT26DF081A-SSU |
Atmel |
Flash 8M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26DF081A-SU |
Atmel |
Flash 8M 8 I/O Pins SPI 256B 2.7V-3.6V |
Data Sheet |
Negotiable |
|
||||
 |
AT26DF161A-SSU |
Atmel |
Flash 16M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26DF161A-SU |
Atmel |
Flash 16M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26DF161-MU |
Atmel |
Flash 16M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26DF161-SU |
Atmel |
Flash 16M 8 I/O Pins SPI 256B 2.7V-3.6V |
Data Sheet |
Negotiable |
|
||||
