Product Summary
The TMS32TMS32C6713BPYPA200PYPA200 DSP composes the floating-point DSP generation in the TMS320C6000 DSP platform. The TMS32C6713BPYPA200 device is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. Operating at 225 MHz, the TMS32C6713BPYPA200 delivers up to 1350 million floating-point operations per second (MFLOPS), 1800 million instructions per second (MIPS), and with dual fixed-/floating-point multipliers up to 450 million multiply-accumulate operations per second (MMACS). Operating at 300 MHz, the TMS32C6713BPYPA200 delivers up to 1800 million floating-point operations per second (MFLOPS), 2400 million instructions per second (MIPS), and with dual fixed-/floating-point multipliers up to 600 million multiply-accumulate operations per second (MMACS).
Parametrics
TMS32C6713BPYPA200 absolute maximum ratings: (1)Supply voltage range, CVDD: -0.3 V to 1.8 V; (2)Supply voltage range, DVDD: -0.3 V to 4 V; (3)Input voltage range: -0.3 V to DVDD + 0.5 V; (4)Output voltage range: -0.3 V to DVDD + 0.5 V; (5)Operating case temperature ranges, TC: (default): 0℃ to 90℃; (A version) [GDPA/ZDPA-200, PYPA-167,-200]: -40℃ to 105℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TMS32C6713BPYPA200 features: (1)Eight 32-Bit Instructions/Cycle; (2)32/64-Bit Data Word; (3)300-, 225-, 200-MHz (GDP and ZDP), and 225-, 200-, 167-MHz (PYP) Clock Rates; (4)3.3-, 4.4-, 5-, 6-Instruction Cycle Times; (5)2400/1800, 1800/1350, 1600/1200, and 1336/1000 MIPS/MFLOPS; (6)Rich Peripheral Set, Optimized for Audio; (7)Highly Optimized C/C++ Compiler; (8)Extended Temperature Devices Available; (9)16-Bit Host-Port Interface; (10)IEEE-1149.1 Boundary-Scan-Compatible.

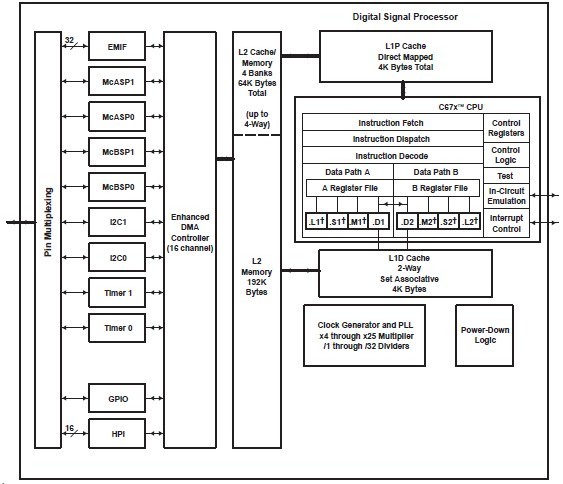

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS32C6713BPYPA200 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Point DSPs TMS320 Platform |
Data Sheet |
|
|
|||||||||||||
