Product Summary

The AT45DB041D-SU is a 2.5-Volt or 2.7-Volt dataflash. It is ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Parametrics

AT45DB041D-SU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V.

Features

AT45DB041D-SU features: (1)single 2.5V or 2.7V to 3.6V supply; (2)use configurable page size; (3)page program operation;(4)low-power dissipation; (5)continuous read capability through entire array.

Diagrams

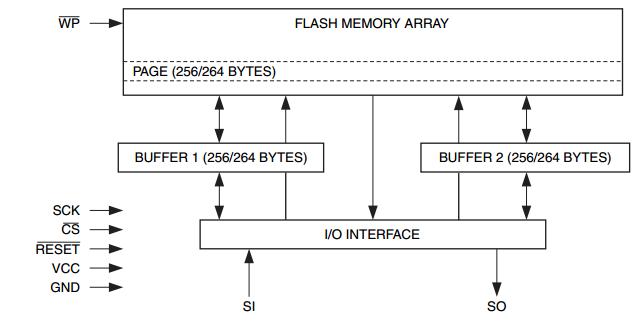

AT45DB041D-SU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT45DB041D-SU
AT45DB041D-SU

Atmel

Flash 4M 8 I/O Pin RapidS SPI 264B 2.5V 2.7V

Data Sheet

0-1: $0.55
1-10: $0.54
10-25: $0.50
25-100: $0.47
AT45DB041D-SU-2.5
AT45DB041D-SU-2.5

Atmel

Flash 4MB SERIAL 2.5V - IND TEMP

Data Sheet

0-1: $0.60
1-10: $0.58
10-25: $0.54
25-100: $0.51
