Product Summary
The BYC8-600 is a Hyperfast power diode. The BYC8-600 is supplied in the SOD59 (TO220AC) conventional leaded package. The applications of the BYC8-600 include Active power factor correction, Half-bridge lighting ballasts, Half-bridge/ full-bridge switched mode power supplies.
Parametrics
BYC8-600 absolute maximum ratings: (1)Peak repetitive reverse voltage, VRRM: 600 V; (2)Crest working reverse voltage, VRWM: 600 V; (3)Continuous reverse voltage Tmb ≤ 110℃, VR: 500 V; (4)Average forward current d = 0.5; with reapplied VRRM(max), IF(AV): 8 A; (5)Repetitive peak forward current d = 0.5; with reapplied VRRM(max), IFRM: 16 A; (6)Non-repetitive peak forward current, t = 10 ms, IFSM: 55 A; t = 8.3 ms, IFSM: 60 A; (7)Storage temperature, Tstg: -40 to 150℃; (8)Operating junction temperature, Tj: 150℃.
Features
BYC8-600 features: (1)Extremely fast switching; (2)Low reverse recovery current; (3)Low thermal resistance; (4)Reduces switching losses in associated MOSFET

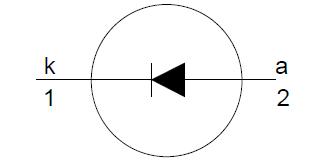

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BYC8-600 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) RAIL PWRDIODE |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BYC8-600,127 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) RAIL PWRDIODE |
Data Sheet |
|
|
||||||||||||
