Product Summary

The DS14185WM is a three driver, five receiver device which conforms to the EIA/TIA-232-E standard. The flow-through pinout facilitates simple non-crossover board layout. The DS14185WM provides a one-chip solution for the common 9-pin serial RS-232 interface between data terminal and data communications equipment.

Parametrics

DS14185WM absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Supply Voltage (V+): +15V; (3)Supply Voltage (V--15V; (4)Driver Input Voltage: 0V to VCC; (5)Driver Output Voltage (Power Off): ±15V; (6)Receiver Input Voltage: ±25V; (7)Receiver Output Voltage (ROUT): 0V to VCC; (8)Maximum Package Power Dissipation @ +25℃ M Package: 1488 mW; (9)Storage Temperature Range: -65℃ to +150℃.

Features

DS14185WM features: (1)Replaces one 1488 and two 1489s; (2)Conforms to EIA/TIA-232-E; (3)3 drivers and 5 receivers; (4)Flow through pinout; (5)Failsafe receiver outputs; (6)20-piSOIC package; (7)LapLink® compatible -200 kbps data rate.

Diagrams

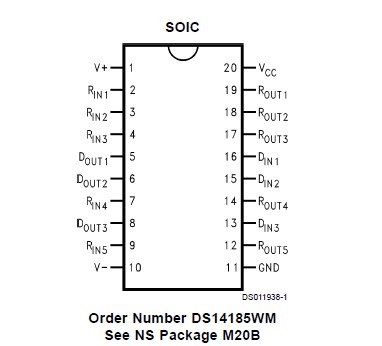

DS14185WM pin connection
