Product Summary

The EPM7128STC100-15N is a high-density, high-performance PLD. It is based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based EPM7128STC100-15N provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz.

Parametrics

EPM7128STC100-15N absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –2.0 to 7.0 V; (2)VI, DC input voltage: –2.0 to 7.0 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TAMB, Ambient temperature Under bias: –65 to 135℃; (6)TJ, Junction temperature Ceramic packages, under bias: 150℃; (7)PQFP and RQFP packages, under bias: 135℃.

Features

EPM7128STC100-15N features: (1)High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX architecture; (2)5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices, ISP circuitry compatible with IEEE Std. 1532; (3)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (4)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (5)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2); (6)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (7)PCI-compliant devices available.

Diagrams

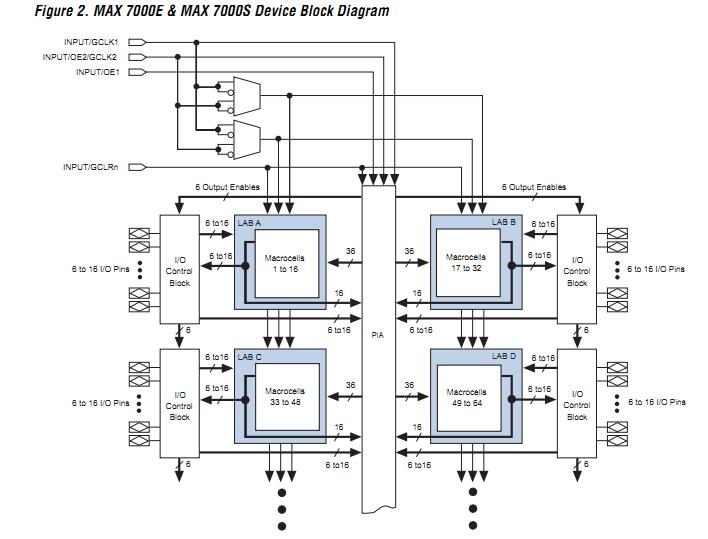

EPM7128STC100-15N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EPM7128STC100-15N
EPM7128STC100-15N


IC MAX 7000 CPLD 128 100-TQFP

Data Sheet

0-1: $10.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EPM7032AE
EPM7032AE

Other


Data Sheet

Negotiable
EPM7032AELC44-10
EPM7032AELC44-10


IC MAX 7000 CPLD 32 44-PLCC

Data Sheet

0-1: $1.26
EPM7032AELC44-10N
EPM7032AELC44-10N


IC MAX 7000 CPLD 32 44-PLCC

Data Sheet

0-1: $1.26
EPM7032AELC44-4
EPM7032AELC44-4


IC MAX 7000 CPLD 32 44-PLCC

Data Sheet

0-390: $2.34
EPM7032AELC44-4N
EPM7032AELC44-4N


IC MAX 7000 CPLD 32 44-PLCC

Data Sheet

0-390: $2.34
EPM7032AELC44-7
EPM7032AELC44-7


IC MAX 7000 CPLD 32 44-PLCC

Data Sheet

0-1: $1.56
