Product Summary

The IRFB42N20DPBF is a HEXFET Power MOSFET. The applications of the IRFB42N20DPBF include high frequency DC-DC converters, motor control, uninterrutible power supplies, lead free.

Parametrics

IRFB42N20DPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 44 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 31 A; (3)Pulsed Drain Current, IDM: 180 A; (4)PD @TA = 25℃ Power Dissipation: 2.4 W; (5)PD @TC = 25℃ Power Dissipation: 330 W; (6)Linear Derating Factor: 2.2 W/℃; (7)Gate-to-Source Voltage, VGS: ±30 V; (8)Peak Diode Recovery dv/dt, dv/dt: 2.5 V/ns; (9)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to + 175℃; (10)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (11)Mounting torqe, 6-32 or M3 screw: 10 lbf·in (1.1N·m).

Features

IRFB42N20DPBF features: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001); (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

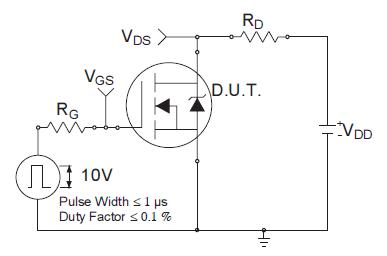

IRFB42N20DPBF circuit diagram
