Product Summary
The IRFR12N25DTRLP is a SMPS MOSFET. The application of the IRFR12N25DTRLP includes High frequency DC-DC converter.
Parametrics
IRFR12N25DTRLP absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 14A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 9.7 A; (3)Pulsed Drain Current, IDM: 56A; (4)PD @TC = 25℃ Power Dissipation: 144 W; (5)Linear Derating Factor: 0.96 W/℃; (6)Gate-to-Source Voltage, VGS: ±30 V; (7)Peak Diode Recovery dv/dt, dv/dt: 9.3 V/ns; (8)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +175℃; (9)Soldering Temperature, for 10 seconds 300 (1.6mm from case)℃.
Features
IRFR12N25DTRLP features: (1)Low Gate to Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001); (3)Fully Characterized Avalanche Voltage and Current.

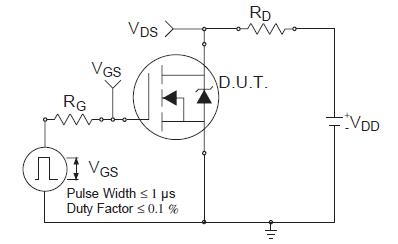

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFR12N25DTRLP |
|
MOSFET N-CH 250V 14A DPAK |
Data Sheet |
Negotiable |
|
||||||
