Product Summary

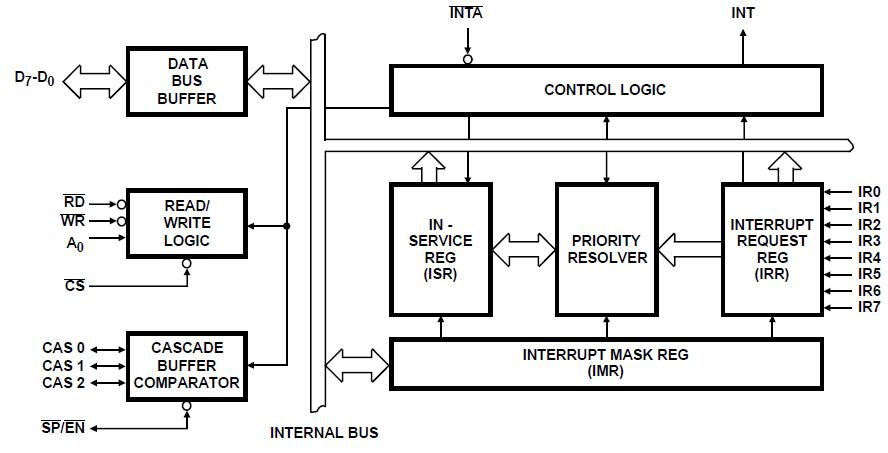

The IS82C59A is a high performance CMOS Priority Interrupt Controller manufactured using an advanced 2mm CMOS process. The IS82C59A is designed to relieve the system CPU from the task of polling in a multilevel priority system. The IS82C59A can handle up to eight vectored priority interrupting sources and is cascadable to 64 without additional circuitry. Individual interrupting sources can be masked or prioritized to allow custom system configuration. Two modes of operation make the IS82C59A compatible with both 8080/85 and 80C86/88/286 formats.

Parametrics

IS82C59A absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND-0.5V to VCC+0.5V; (3)ESD Classification: Class I; (4)Operating Voltage Range: +4.5V to +5.5V; (5)Operating Temperature Range: -55℃ to +125℃; (6)Input Low Voltage: 0V to +0.8V.

Features

IS82C59A features: (1)12.5MHz, 8MHz and 5MHz Versions Available: 8MHz Operation; (2)High Speed, "No Wait-State" Operation with 12.5MHz 80C286 and 8MHz 80C86/88; (3)Pin Compatible with NMOS 8259A ; (4)80C86/88/286 and 8080/85/86/88/286 Compatible; (5)Eight-Level Priority Controller, Expandable to 64 Levels; (6)Programmable Interrupt Modes; (7)Individual Request Mask Capability; (8)Fully Static Design; (9)Fully TTL Compatible; (10)Low Power Operation, ICCSB: 10mA Maximum; ICCOP: 1mA/MHz Maximum; (11)Single 5V Power Supply; (12)Operating Temperature Ranges: -40℃ to +85℃.
