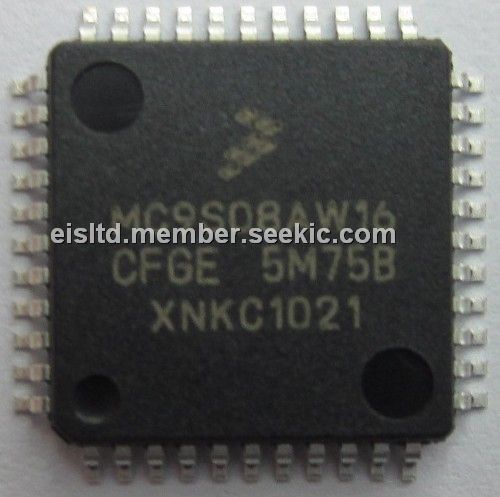

Product Summary
The MC9S08AW16CFGE is a low-cost, high-performance Microcontroller. The MC9S08AW16CFGE uses the enhanced HCS08 core and is available with a variety of modules, memory sizes, memory types, and package types.
Parametrics
MC9S08AW16CFGE absolute maximum ratings: (1)Supply voltage:–0.3V to + 5.8V; (2)Input voltage:– 0.3V to VDD + 0.3V; (3)Instantaneous maximum current:±25 mA; (4)Maximum current into VDD:120 mA; (5)Storage temperature:–55℃ to +150℃; (6)Maximum junction temperature:150℃.
Features
MC9S08AW16CFGE features: (1)40-MHz HCS08 CPU (central processor unit); (2)20-MHz internal bus frequency; (3)HC08 instruction set with added BGND instruction; (4)Single-wire background debug mode interface; (5)Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module); (6)Up to 60 KB of on-chip in-circuit programmable FLASH memory with block protection and security options; (7)Up to 2 KB of on-chip RAM; (8)Clock source options include crystal, resonator external clock, or internally generated clock with precision NVM trimming; (9)Optional computer operating properly (COP reset; (10)Low-voltage detection with reset or interrup; (11)Illegal opcode detection with reset; (12)Illegal address detection with reset; (13)Up to 54 general-purpose input/output (I/O) pins; (14)Software-selectable pullups on ports when used as inputs; (15)Software-selectable slew rate control on ports when used as outputs; (16)Software-selectable drive strength on ports when used as outputs; (17)Master reset pin and power-on reset (POR); (18)Internal pullup on RESET, IRQ, and BKGD/MS pins to reduce customer system cost.

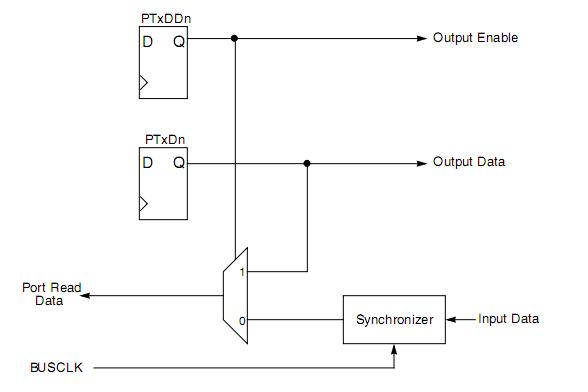

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC9S08AW16CFGE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8 BIT 16K FLASH 4K RAM |
Data Sheet |
|
|
||||||||||||
|
MC9S08AW16CFGER |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8B 16K FLASH 4K RAM |
Data Sheet |
|
|
||||||||||||
