Product Summary

The IVC102U is a precision integrating amplifier with FET op amp, integrating capacitors, and low leakage FET switches. It integrates low-level input current for a user-determined period, storing the resulting voltage on the integrating capacitor. The output voltage can be held for accurate measurement. The IVC102U provides a precision, lower noise alternative to conventional transimpedance op amp circuits that require a very high value feedback resistor. The applications of the IVC102U include precision low current measurement, photodiode measurements, ionization chamber measurements, current/charge-output sensors, leakage current measurement.

Parametrics

IVC102U absolute maximum ratings: (1)Supply Voltage, V+ to V-: 36V; (2)Logic Input Voltage: V- to V+; (3)Output Short Circuit to Ground: Continuous; (4)Operating Temperature: -40℃ to +125℃; (5)Storage Temperature: -55℃ to +125℃; (6)Lead Temperature (soldering, 10s): 300℃.

Features

IVC102U features: (1)On-chip integrating capacitors; (2)Gain programmed by timing; (3)Low input bias current: 750fA max; (4)Low noise; (5)Low switch charge injection; (6)Fast pulse integration; (7)Low nonlinearity: 0.005% typ; (8)14-PIN DIP, SO-14 surface mount.

Diagrams

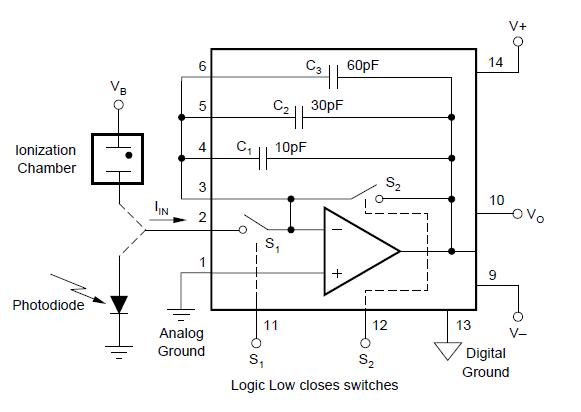

IVC102U block diagram
