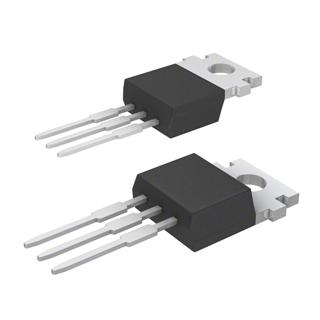

Product Summary

The LM337T is adjustable 3-terminal negative voltage regulator capable of supplying in excess of −1.5A over an output voltage range of −1.2V to −37V. The LM337T is exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The LM337T design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads. The LM337T serves a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM337T is ideal complements to the LM117/LM317 adjustable positive regulators.

Parametrics

LM337T absolute maximum ratings: (1)Input-Output Voltage Differential |VI - VO|: 40 V; (2)Power Dissipation PD: Internally limited W; (3)Operating Temperature Range TOPR: 0 to +125 ℃; (4)Storage Temperature Range TSTG: -65 to +125 ℃.

Features

LM337T features: (1)Excellent thermal regulation, 0.002%/W; (2)77 dB ripple rejection; (3)Excellent rejectioof thermal transients; (4)50 ppm/°C temperature coefficient; (5)Temperature-independent current limit; (6)Internal thermal overload protection; (7)P+ Product Enhancement tested; (8)Standard 3-lead transistor package; (9)Output is short circuit protected.

Diagrams

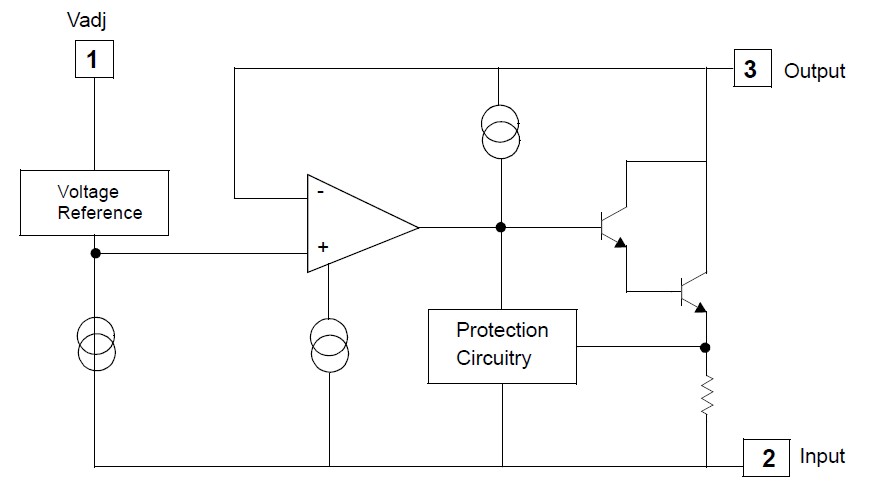

LM337T pin connection
