Product Summary
The TMS320VC5509AZHH is a fixed-point digital signal processor (DSP). The TMS320VC5509AZHH achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU of the TMS320VC5509AZHH supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses of the TMS320VC5509AZHH provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform up to two data transfers per cycle independent of the CPU activity.
Parametrics
TMS320VC5509AZHH absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3 V to 4.0 V; (2)Supply voltage core range, CVDD: -0.3 V to 2.0 V; (3)Input voltage range, VI: -0.3 V to 4.5 V; (4)Output voltage range, VO: -0.3 V to 4.5 V; (5)Operating case temperature range, TC: - 40 to 85℃; (6)Storage temperature range Tstg: -55 to 150℃.
Features
TMS320VC5509AZHH features: (1)Programmable Phase-Locked Loop Clock Generator; (2)Seven (LQFP) or Eight (BGA) General- Purpose I/O (GPIO) Pins and a General-Purpose Output Pin (XF); (3)USB Full-Speed (12 Mbps) Slave Port Supporting Bulk, Interrupt and Isochronous Transfers; (4)Inter-Integrated Circuit (I2C) Multi-Master and Slave Interface; (5)Real-Time Clock (RTC) With Crystal Input, Separate Clock Domain, Separate Power Supply; (6)4-Channel (BGA) or 2-Channel (LQFP) 10-Bit Successive Approximation A/D.

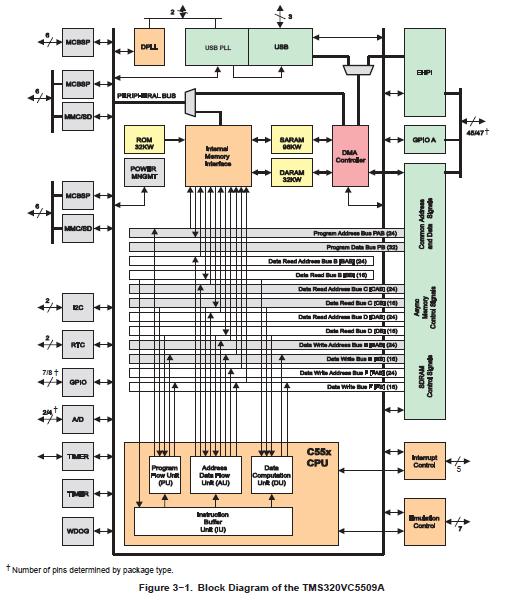

Diagrams
