Product Summary

The LM384N is a power audio amplifier for consumer application. In order to hold system cost to a minimum, gain is internally fixed at 34 dB. A unique input stage allows inputs to be ground referenced. The output is automatically self-centering to one half the supply voltage. The output is short-circuit proof with internal thermal limiting. The package outline is standard dual-in-line. A copper lead frame is used with the center three pins on either side comprising a heat sink. This makes the LM384N easy to use in standard p-c layout. Uses include simple phonograph amplifiers, intercoms, line drivers, teaching machine outputs, alarms, ultrasonic drivers, TV sound systems, AM-FM radio, sound projector systems, etc.

Parametrics

LM384N absolute maximum ratings: (1)Supply Voltage: 28V; (2)Peak Current: 1.3A; (3)Power Dissipation: 1.67W; (4)Input Voltage: ±0.5V; (5)Storage Temperature: -65℃ to +150℃; (6)Operating Temperature: 0℃ to +70℃; (7)Lead Temperature(Soldering, 10 sec.): 260℃; (8)Thermal Resistance, θJC: 30℃/W; θJA: 79℃/W.

Features

LM384N features: (1)Wide supply voltage range; (2)Low quiescent power drain; (3)Voltage gain fixed at 50; (4)High peak current capability; (5)Input referenced to GND; (6)High input impedance; (7)Low distortion; (8)Quiescent output voltage is at one half of the supply voltage; (9)Standard dual-in-line package.

Diagrams

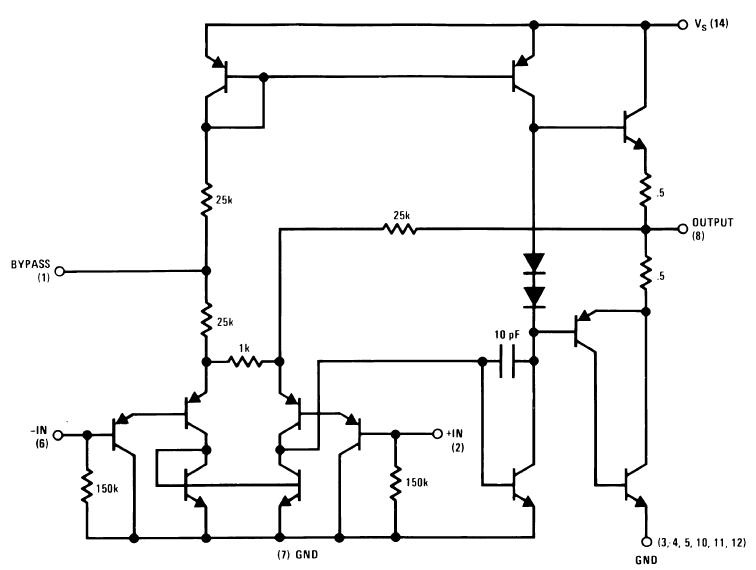

LM384N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM384N/NOPB
LM384N/NOPB
National Semiconductor (TI)
Audio Amplifiers 5-W AUDIO POWER AMP
Data Sheet
0-1: $1.22
1-25: $0.99
25-100: $0.89
100-250: $0.79
LM384N
LM384N
National Semiconductor (TI)
Audio Amplifiers
Data Sheet
0-550: $0.70
550-1000: $0.53
1000-5000: $0.51
5000-10000: $0.50
