Product Summary

The LMC6041AIN is a CMOS single micropower operational amplifier. Providing input currents of only 2 fA typical, the LMC6041AIN can operate from a single supply, has output swing extending to each supply rail, and an input voltage range that includes ground. The LMC6041AIN is ideal for use in systems requiring ultra-low power consumption. In addition, the insensitivity to latch-up, high output drive, and output swing to ground without requiring external pull-down resistors make it ideal for single-supply battery-powered systems. Other applications for the LMC6041AIN include bar code reader amplifiers, magnetic and electric field detectors, and hand-held electrometers.

Parametrics

LMC6041AIN absolute maximum ratings: (1)Differential Input Voltage: ±Supply Voltage; (2)Supply Voltage (V+ − V−): 16V; (3)Storage Temperature Range: −65℃ to +150℃; (4)Junction Temperature: 110℃; (5)ESD Tolerance: 500V; (6)Current at Input Pin: ±5 mA; (7)Current at Output Pin: ±18 mA; (8)Current at Power Supply Pin: 35 mA; (9)CMRR Common Mode: 75dB.

Features

LMC6041AIN features: (1)Low supply current: 14 μA (Typ); (2)Operates from 4.5V to 15.5V single supply; (3)Ultra low input current: 2 fA (Typ); (4)Rail-to-rail output swing; (5)Input common-mode range includes ground.

Diagrams

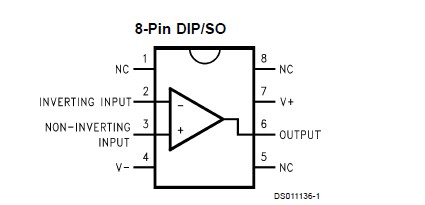

LMC6041AIN pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LMC6041AIN
LMC6041AIN

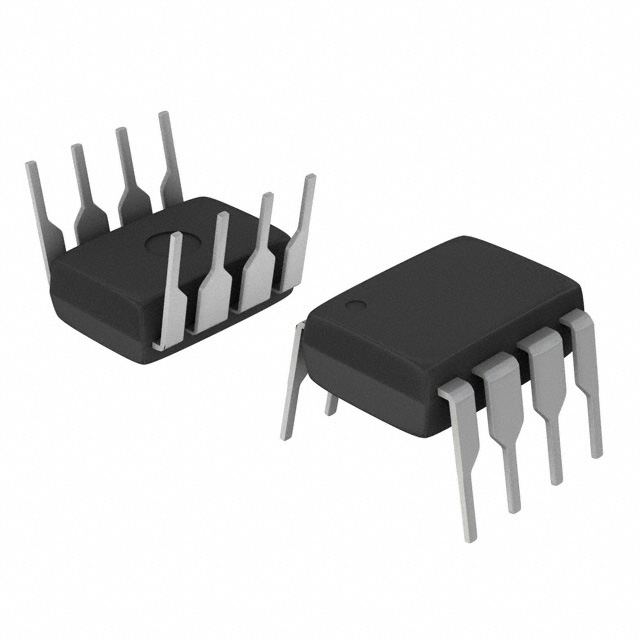

IC OP AMP CMOS SINGL MICRO 8-DIP
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LMC6001
LMC6001
Other

Data Sheet
Negotiable
LMC6001AIN
LMC6001AIN
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-40: $8.97
40-120: $8.26
120-280: $7.52
280-520: $7.03
LMC6001AIN/NOPB
LMC6001AIN/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps ULTRA ULTRA-LOW INPUT CURRENT AMP
Data Sheet
0-1: $10.67
1-25: $8.97
25-100: $8.26
100-250: $7.52
LMC6001BIN
LMC6001BIN
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-80: $6.05
80-120: $5.45
120-280: $5.02
280-520: $4.58
LMC6001BIN/NOPB
LMC6001BIN/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps Ultra Ultra-Low Input Current Amp
Data Sheet
0-1: $7.38
1-25: $6.05
25-100: $5.45
100-250: $5.02
LMC6001CIN
LMC6001CIN

IC AMP ULTRA LO INPUT CURR 8-DIP
Data Sheet
Negotiable
