Product Summary
The LT1011CS8#TR is a general purpose comparator with significantly better input characteristics than the LM111. The LT1011CS8 is also fully specified for DC parameters and response time when operating on a single 5V supply. It can drive loads referenced to ground, negative supply or positive supply, and is specified up to 50V between V- and the collector output. The applications of the LT1011CS8#TR are SAR A/D Converters, Voltage-to-Frequency Converters, Precision RC Oscillator, Peak Detector, Motor Speed Control, Pulse Generator, Relay/Lamp Driver.
Parametrics
LT1011CS8#TR absolute maximum ratings: (1)Supply Voltage: 36V; (2)Output to Negative Supply: 40V; (3)Ground to Negative Supply: 30V; (4)Differential Input Voltage: ±36V; (5)Voltage at STROBE Pin: 5V; (6)Output Short-Circuit Duration: 10 sec; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage Temperature Range: -65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1011CS8#TR features: (1)Pin Compatible with LM111 Series Devices; (2)Guaranteed Max 0.5mV Input Offset Voltage; (3)Guaranteed Max 25nA Input Bias Current; (4)Guaranteed Max 3nA Input Offset Current; (5)Guaranteed Max 250ns Response Time; (6)Guaranteed Min 200,000 Voltage Gain; (7)50mA Output Current Source or Sink; (8)±30V Differential Input Voltage; (9)Fully Specified for Single 5V Operation.

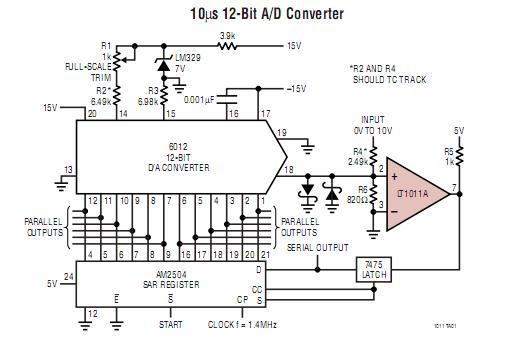

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1011CS8#TR |
|
IC COMPARATOR VOLTAGE 5V 8SOIC |
Data Sheet |
|
|
||||||
|
LT1011CS8#TRPBF |
|
IC VOLTAGE COMPARATOR 5V 8-SOIC |
Data Sheet |
|
|
||||||
