Product Summary

The Altera EPF6016AQC208-3N is a programmable logic device (PLD) which provides a low-cost alternative to high-volume gate array designs. It is based on the OptiFLEX architecture, which minimizes die size while maintaining high performance and routability. The EPF6016AQC208-3N has reconfigurable SRAM elements, which give designers the flexibility to quickly change their designs during prototyping and design testing. Designers can also change functionality during operation via in-circuit reconfiguration.

Parametrics

EPF6016AQC208-3N absolute maximum ratings: (1)Supply voltage: –2.0 to 7.0 V With respect to ground; (2)DC input voltage: –2.0 to 7.0 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature PQFP, TQFP, and BGA packages: 135 ℃.

Features

EPF6016AQC208-3N features: (1)Provides an ideal low-cost, programmable alternative to highvolume gate array applications and allows fast design changes during prototyping or design testing; (2)Product features: Register-rich, look-up table- (LUT-) based architecture, OptiFLEX architecture that increases device area efficiency, Typical gates ranging from 5,000 to 24,000 gates, Built-in low-skew clock distribution tree, 100% functional testing of all devices; test vectors or scan chains are not required; (3)System-level features: In-circuit reconfigurability (ICR) via external configuration device or intelligent controller, 5.0-V devices are fully compliant with peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2.

Diagrams

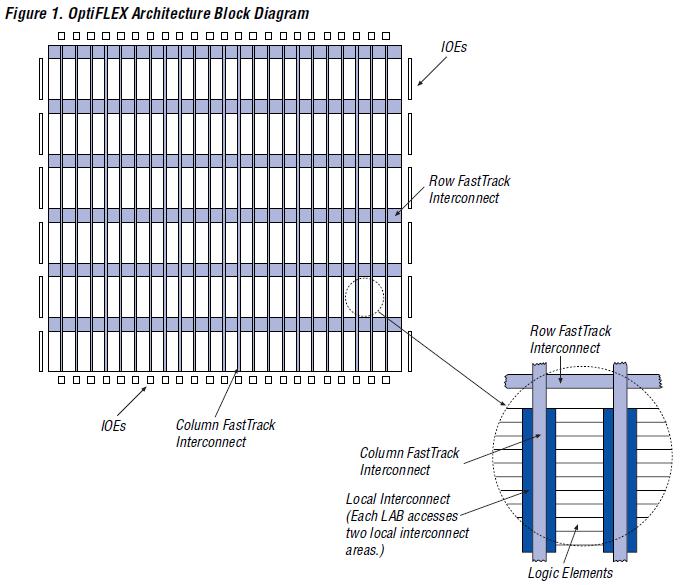

EPF6016AQC208-3N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EPF6016AQC208-3N
EPF6016AQC208-3N

IC FLEX 6000 FPGA 16K 208-PQFP
Data Sheet
0-1: $16.50
