Product Summary
The LT1013DS8 is a precision quad operational amplifier which directly upgrades designs in the industry standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration. It is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The LT1013DS8’s low offset voltage of 50mV, drift of 0.3mV/℃, offset current of 0.15nA, gain of 8 million, common-mode rejection of 117dB and power supply rejection of 120dB qualify it as four truly precision operational amplifiers. The applications of the LT1013DS8 include Battery-Powered Precision Instrumentation, Strain Gauge Signal Conditioners, Thermocouple Amplifiers, Instrumentation Amplifiers, 4mA-20mA Current Loop Transmitters, Multiple Limit Threshold Detection, Active Filters, Multiple Gain Blocks.
Parametrics
LT1013DS8 absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range, All Grades: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LT1013DS8 features: (1)Single Supply Operation; (2)Input Voltage Range Extends to Ground; (3)Output Swings to Ground while Sinking Current; (4)Pin Compatible to 1458 and 324 with Precision Specs; (5)Guaranteed Offset Voltage: 150mV Max.; (6)Guaranteed Low Drift: 2mV/℃ Max; (7)Guaranteed Offset Current: 0.8nA Max.; (8)Guaranteed High Gain, 5mA Load Current: 1.5 Million Min; 17mA Load Current: 0.8 Million Min; (9)Guaranteed Low Supply Current: 500mA Max.; (10)Low Voltage Noise, 0.1Hz to 10Hz: 0.55mVp-p; (11)Low Current Noise-Better than 0P-07, 0.07pA/√z.

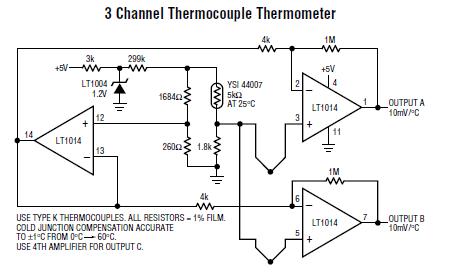

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1013DS8 |
|
IC PRECISION OP-AMP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1013DS8#PBF |
|
IC PRECISION OP-AMP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1013DS8#TR |
|
IC PRECISION OP-AMP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1013DS8#TRPBF |
|
IC PRECISION OP-AMP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
