Product Summary
The LT1034CS8-2.5#TR is a micropower, precision 1.2V/2.5 reference combined with a 7V auxiliary reference. The 1.2V/2.5V reference is a trimmed, thin-film, band-gap, voltage reference with 1% initial tolerance and guaranteed 20ppm/℃ temperature drift. Operating on only 20mA, the LT1034CS8-2.5#TR offers guaranteed drift, low temperature cycling hysteresis and good long-term stability. The low dynamic impedance makes the LT1034CS8-2.5#TR easy to use from unregulated supplies. The 7V reference is a subsurface zener device for less demanding applications. The applications of the LT1034CS8-2.5#TR include Portable Meters, Precision Regulators, Calibrators.
Parametrics
LT1034CS8-2.5#TR absolute maximum ratings: (1)Operating Current: 20mA; (2)Forward Current: 20mA; (3)Storage Temperature Range: -65℃ to 150℃; (4)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1034CS8-2.5#TR features: (1)Guaranteed 20 ppm/℃ Drift; (2)Guaranteed 40 ppm/℃ Drift (SO-8 Package); (3)20mA to 20mA Operation (1.2V); (4)Dynamic Impedance: 1W; (5)7V, 100mA Reference.

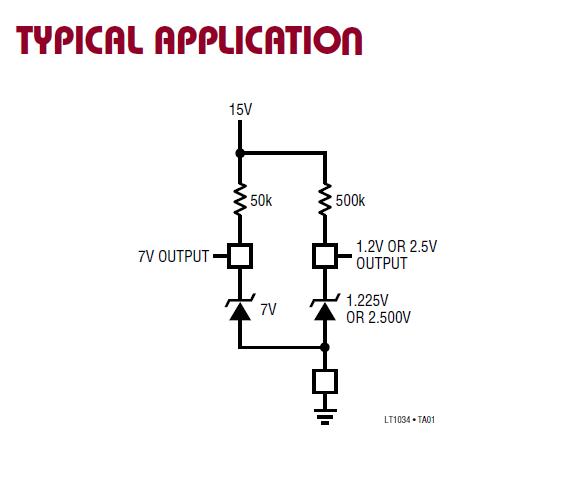

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1034CS8-2.5#TR |
|
IC VREF SHUNT PREC DUAL 8-SOIC |
Data Sheet |
|
|
||||||
|
LT1034CS8-2.5#TRPBF |
|
IC VREF SHUNT PREC DUAL 8-SOIC |
Data Sheet |
|
|
||||||
