MAX6814XK+T

5-Pin Watchdog Timer Circuit, SC70-5, 4μA Operating Current, 1.6s Timeout, Fully Specified, No External Components

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.20

PartNumber:: MAX6814XK+T

Brand:: Maxim Integrated Products - Maxim | Pack: SC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-26

From Other Seller

Part Number:MAX6814XK+T
US $0.80 - 1.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

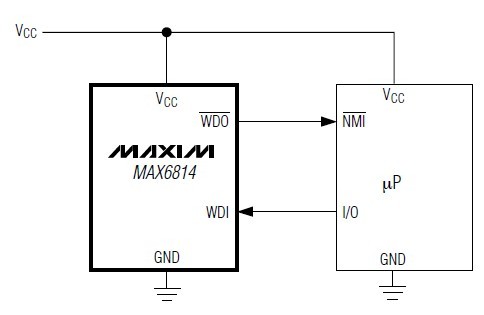

The MAX6814XK+T is a low-power watchdog circuit in a tiny 5-pin SC70 package. The MAX6814XK+T improves system reliability by monitoring the system for software code execution errors. When the watchdog input detects a transitional edge, the internal watchdog timer clears and restarts, then begins counting again. If the watchdog timer exceeds the watchdog timeout period (1.6s typ), the active-low, push-pull watchdog output asserts for the mwatchdog pulse period (140ms min) to alert the system of the fault. The MAX6814XK+T consumes only 4μA of supply current and is fully specified over the extended temperature range.

Parametrics

MAX6814XK+T absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Input Current, WDI: 20mA; (4)Output Current, WDO: 20mA; (5)Continuous Power Dissipation (TA = +70℃), 5-Pin SC70 (derate 3.1mW/℃ above +70℃): 247mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX6814XK+T features: (1)4μA Operating Current; (2)Watchdog Timer with 1.6s Timeout; (3)140ms (min) WDO Pulse Period; (4)Push-Pull Active-Low WDO; (5)Fully Specified Over Extended Temperature Range; (6)No External Components.
