Product Summary
The LT1076HVCR#TR is a 5A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components, are included on the chip. The topology is a classic positive “buck” configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1076HVCR#TR to drive a tapped-inductor in the buck mode with output currents up to 10A. The applications of the include Buck Converter with Output Voltage Range of 2.5V to 50V, Tapped-Inductor Buck Converter with 10A Output at 5V, Positive-to-Negative Converter, Negative Boost Converter, Multiple Output Buck Converter.
Parametrics
LT1076HVCR#TR absolute maximum ratings: (1)Input Voltage, LT1074HV/LT1076HV: 64V; (2)Switch Voltage with Respect to Input Voltage, LT1074HV/LT1076HV: 75V; (3)Switch Voltage with Respect to Ground Pin (VSW Negative), LT1074HV/LT1076HV: 45V; (4)Feedback Pin Voltage: -2V to +10V; (5)Shutdown Pin Voltage (Not to Exceed VIN): 40V; (6)Maximum Storage Temperature: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1076HVCR#TR features: (1)5A Onboard Switch (LT1074); (2)100kHz Switching Frequency; (3)Greatly Improved Dynamic Behavior; (4)Available in Low Cost 5 and 7-Lead Packages; (5)Only 8.5mA Quiescent Current; (6)Programmable Current Limit; (7)Operates Up to 60V Input; (8)Micropower Shutdown Mode.

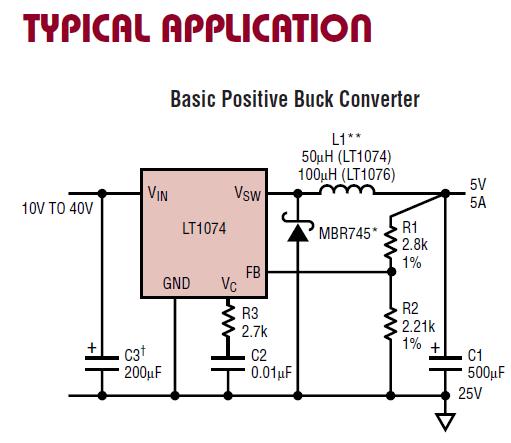

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1076HVCR#TR |
|
IC REG MULTI CONFIG ADJ 2A D2PAK |
Data Sheet |
|
|
||||||
|
LT1076HVCR#TRPBF |
|
IC REG MULTI CONFIG ADJ 2A D2PAK |
Data Sheet |
|
|
||||||
