Product Summary
The LT1193CS8#TR is a video difference amplifier. This versatile amplifier features uncommitted high input impedance and inputs, and can be used in differential or single-ended configurations. Its applications include line receivers, video signal processing, cable drivers, oscillators, tape and disc drive systems.
Parametrics
LT1193CS8#TR absolute maximum ratings: (1)total supply voltage: 18V; (2)differential input voltage: ±6V; (3)output short-circuit duration: continuous; (4)operating temperature range: -55 to 125℃; (5)maximum temperature: 150℃; (6)storage temperature range: -65 to 150℃.
Features
LT1193CS8#TR features: (1)Low cost; (2)differential gain error: 0.2%; (3)output current: ±50mA; (4)slew rate: 500V/μs; (5)output shutdown; (6)drives cables directly.

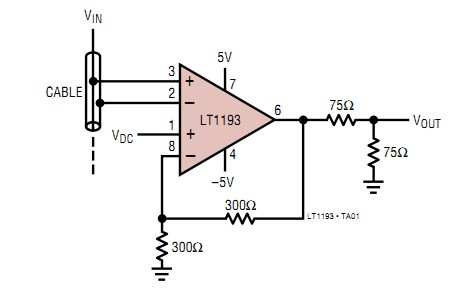

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1193CS8#TR |
|
IC AMP VIDEO DIFF ADJUST 8SOIC |
Data Sheet |
|
|
||||||
|
LT1193CS8#TRPBF |
|
IC AMP VIDEO DIF ADJ 8-SOIC |
Data Sheet |
|
|
||||||
