Product Summary

The TMS320VC5502PGF300 fixed-point digital signal processor (DSP) is based on the TMS320C55x. DSP generation CPU processor core. The TMS320VC5502PGF300 architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The TMS320VC5502PGF300 supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform data transfers independent of the CPU activity.

Parametrics

TMS320VC5502PGF300 absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3 V to 4.0 V; (2)Supply voltage core range, CVDD: -0.3 V to 2.0 V; (3)Input voltage range, VI: -0.3 V to 4.5 V; (4)Output voltage range, Vo: -0.3 V to 4.5 V; (5)Operating case temperature range, TC: -40℃ to 85℃; (6)Storage temperature range, Tstg: -55℃ to 150℃.

Features

TMS320VC5502PGF300 features: (1)High-Performance, Low-Power, Fixed-Point ; (2)Programmable Low-Power Control of Six Device Functional Domains; (3)Instruction Cache (16K Bytes); (4)8M × 16-Bit Maximum Addressable External Memory Space; (5)On-Chip Scan-Based Emulation Logic; (6)3.3-V I/O Supply Voltage; (7)1.26-V Core Supply Voltage.

Diagrams

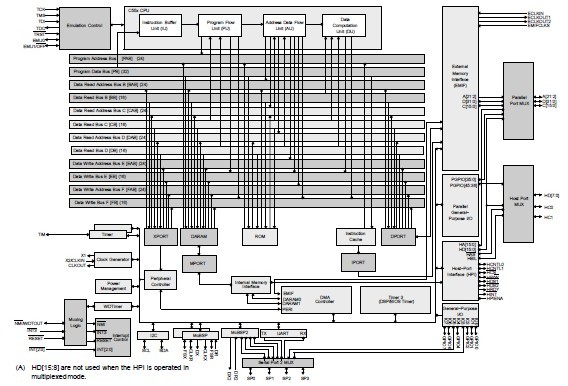

TMS320VC5502PGF300 Functional Overview

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

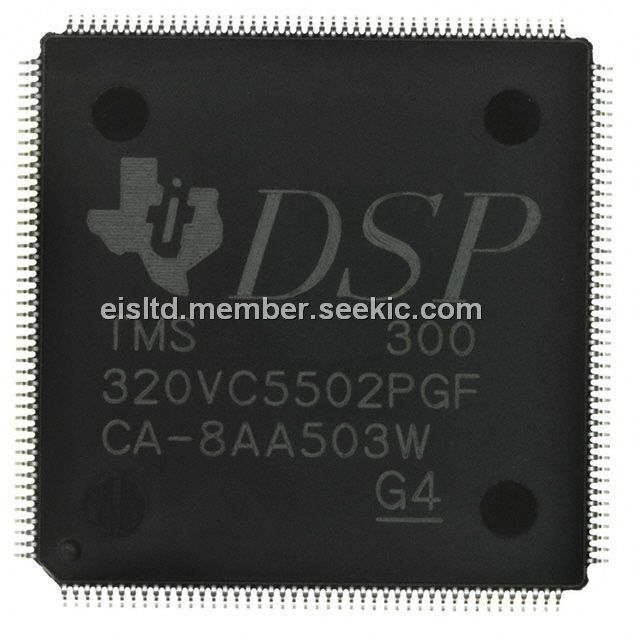

TMS320VC5502PGF300
TMS320VC5502PGF300

Texas Instruments

Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Processor

Data Sheet

0-1: $9.41
1-25: $8.99
25-100: $6.75
100-250: $6.61
