Product Summary
The LT1213CS8#TR is a single supply dual and quad precision op amp. It is a quad version of the same amplifier. The DC precision of the LT1213CS8#TR eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers. Its applications include 2.5V Full-Scale 12-Bit Systems: VOS ≤ 0.45LSB, 10V Full-Scale 16-Bit Systems: VOS ≤ 1.8LSB, Active Filters, Photodiode Amplifiers, DAC Current-to-Voltage Amplifiers, Battery-Powered Systems.
Parametrics
LT1213CS8#TR absolute maximum ratings: (1)total supply voltage: 36V; (2)input current: ±15mA; (3)output short-circuit duration: continuous; (4)operating temperature range: -40 to 85℃; (5)storage temperature range: -65 to 150℃; (6)junction temperature: 150℃.
Features
LT1213CS8#TR features: (1)Large Output Drive Current: 30mA Min; (2)Low Supply Current per Amplifier: 3.5mA Max; (3)Dual in 8-Pin DIP and SO-8; (4)Quad in 14-Pin DIP and NARROW SO-16; (5)Slew Rate: 12V/s Typ; (6)Gain-Bandwidth Product: 28MHz Typ; (7)Fast Settling to 0.01%; (8)Low Input Noise Voltage: 10nV/√Hz Typ; (9)Low Input Noise Current: 0.2pA/√Hz Typ; (10)Specified at 3.3V, 5V and ±15V.

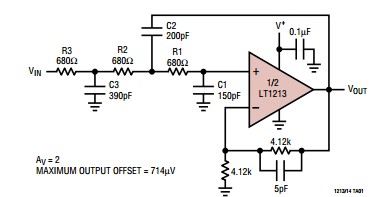

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1213CS8#TR |
|
IC OPAMP DUAL PREC 28MHZ 8SOIC |
Data Sheet |
|
|
||||||
|
LT1213CS8#TRPBF |
|
IC PREC OP-AMP 28MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||
