Product Summary
The LT1227CS8#TR is a 140MHz video current feedback amplifier. A shutdown feature switches the device into a high impedance, low current mode, allowing multiple devices to be connected in parallel and selected. Its applications include video amplifiers, cable drivers, RGB amplifiers, test equipment amplifiers, 50Ω buffers for driving mixers.
Parametrics
LT1227CS8#TR absolute maximum ratings: (1)supply voltage: ±18V; (2)input current: 15mA; (3)output short circuit duration: continuous; (4)operating temperature range: 0 to 70℃; (5)storage temperature range: -65 to 150℃; (6)lead temperature: 300℃.
Features
LT1227CS8#TR features: (1)30mA output drive current; (2)high input impedance: 14MΩ, 3pF; (3)wide supply range: ±2V to ±15V; (4)shutdown mode: IS＜250μA; (5)low supply current: 10mA; (6)0.01% differential gain.

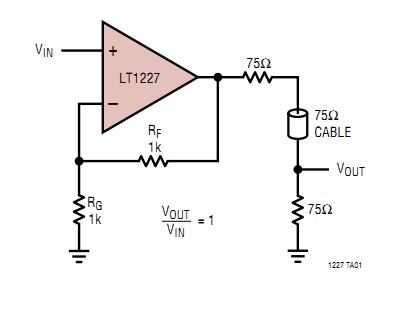

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1227CS8#TR |
|
IC AMP VID DIFF CURR FDBK 8SOIC |
Data Sheet |
|
|
||||||
|
LT1227CS8#TRPBF |
|
IC VIDEO CURRNT FEEDBK AMP 8SOIC |
Data Sheet |
|
|
||||||
