Product Summary
The LT1316CMS8#TR is a micropower DC/DC converter with programmable peak current limit. Its applications include Battery Backup, LCD Bias, Low Power–48V to 5V/3.3V Converters. A programmable input current limiting function allows precise control of peak switch current. Peak switch current can be set to any value between 30mA and 500mA by adjusting one resistor.
Parametrics
LT1316CMS8#TR absolute maximum ratings: (1)VIN voltage: 12V; (2)RSET voltage: 5V; (3)LBO voltage: 12V; (4)maximum switch current: 750mA; (5)maximum junction temperature: 125℃; (6)operating temperature range: 0 to 70℃; (7)lead temperature: 300℃; (8)LBI voltage: VIN.
Features
LT1316CMS8#TR features: (1)Precise Control of Peak Switch Current; (2)Quiescent Current: 33µA in Active Mode; (3)Low-Battery Detector Active in Shutdown; (4)Low Switch VCESAT: 300mV at 500mA; (5)8-Lead MSOP and SO Packages; (6)Operates with VIN as Low as 1.5V; (7)Logic Level Shutdown Pin.

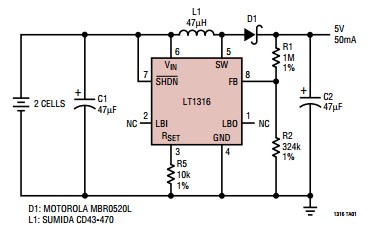

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

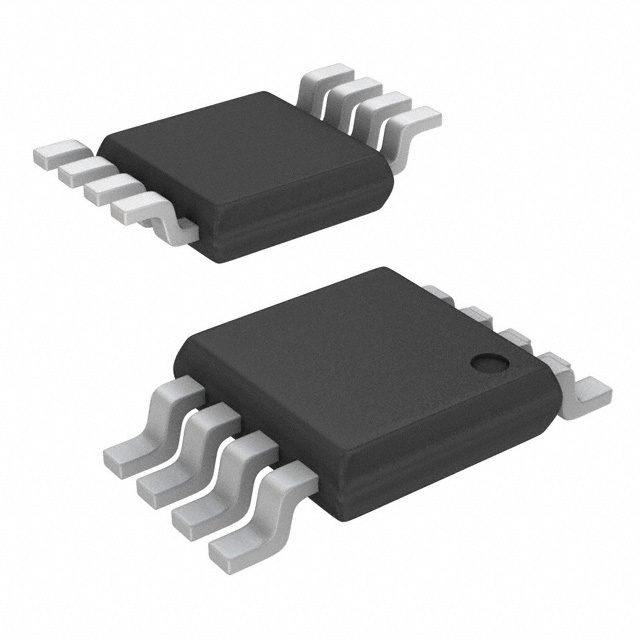

 LT1316CMS8#TR |
|
IC REG BST FLYBK ADJ 0.5A 8MSOP |
Data Sheet |
|
|
||||||
|
LT1316CMS8#TRPBF |
|
IC REG BST FLYBK ADJ 0.5A 8MSOP |
Data Sheet |
|
|
||||||
