Product Summary
The LT1573CS8#TR is low dropout PNP regulator driver. Its applications include 3.3V to 2.5V Regulators, Microprocessor Power Sources, Post Regulator for Switching Supplies, High Efficiency Linear Regulators, Ultralow Dropout Regulators, Low Voltage Linear Regulators. The LT1573CS8#TR is designed for extremely fst transient response. It can be used in applications with fast, high current load transients.
Parametrics
LT1573CS8#TR absolute maximum ratings: (1)Input Pin Voltage (VIN to GND): 10V; (2)Drive Pin Voltage (VDRIVE to GND): 10V; (3)Output Pin Voltage (VOUT to GND): 10V; (4)Shutdown Pin Voltage (VSHDN to GND): 10V; (5)Storage Temperature Range: – 65°C to 150°C; (6)Lead Temperature (Soldering, 10 sec.): 300°C.
Features
LT1573CS8#TR features: (1)Low Cost Solution for High Current, Low Dropout Regulators; (2)Fast Transient Response Needs Much Less Bulk Capacitance; (3)Latching Overload Protection Minimizes Heat Sink Size; (4)Precision Output Voltage (1%).

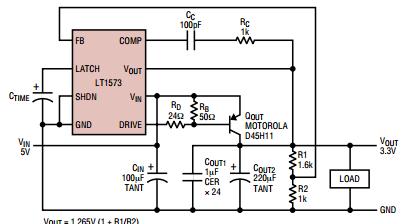

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1573CS8#TR |
|
IC REG CTRLR SGL POS ADJ 8SOIC |
Data Sheet |
|
|
||||||
|
LT1573CS8#TRPBF |
|
IC REG CTRLR SGL POS ADJ 8-SOIC |
Data Sheet |
|
|
||||||
